Box 1 PZ

FANTON A82840 305mt Skein Cable U / UTP LAN cat 6 4x2 AWG 23 copper 250MHz LSZH 75C

Name: FANTON A82840 305mt Skein Cable U / UTP LAN cat 6 4x2 AWG 23 copper 250MHz LSZH 75C
Brand: FANTON
SKU: A82840
Price: 108.43 EUR
Availability: OutOfStock

Out of stock

SKU: A82840

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

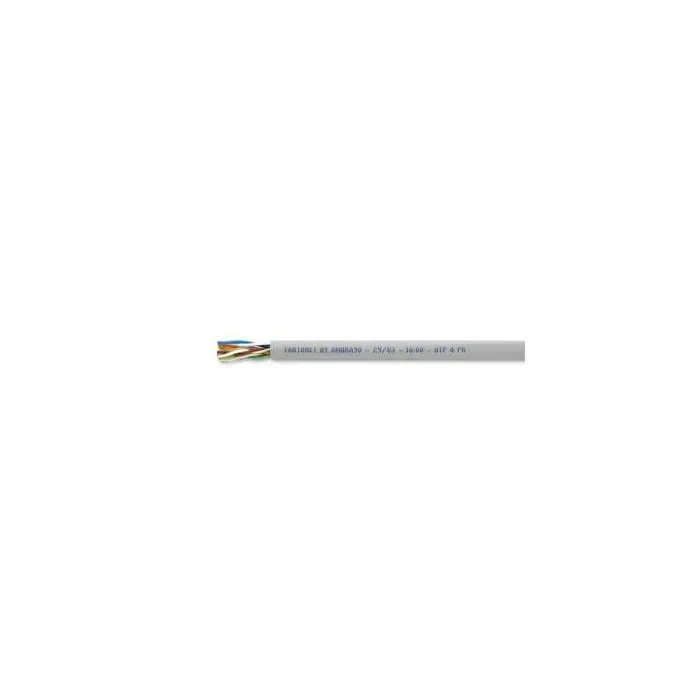

Cable 4 pairs cat. 6 with solid copper conductors. It supports Fast Ethernet, Gigabit Ethernet, 155 Mb / s ATM, Multimedia Design totally accepted for the entire commercial installation network. Cables offer maximum design flexibility under real application conditions that preserve long-term network investment Electrical performance according to ANSI / TIA standard 568C.2 ISO / IEC II801 RoHS compliant cables

Beware of buying cables, be wary of relatively low prices. Some producers build cables with copper-colored aluminum, which has the same color but lighter, breaks in the passages and above all does not have the same yield as copper.

Sold in rolls of 305mt. BRAND FANTON

Specifications

Electrical characteristics:

Impedance: 100 + 15 (Ω)
Capacity pF / m 5.36 (pF / m)
DC resistance of the conductor (at 20 ° C): 82.8 (Ω / km)

Mechanical characteristics:

Operating temperature: -15 ° C to +70 ° C
Installation temperature: -5 ° C to +50 ° C
Storage temperature: -15 ° C to +70 ° C
Minimum radius of curvature: 8 x Diameter of cable (mm)
Maximum tensile load: 70 (N / mm2)

More Information

Shipping	Shipping 24/48H
Warranty	2 year warranty
Ean	8016219828405
Smart home	No
