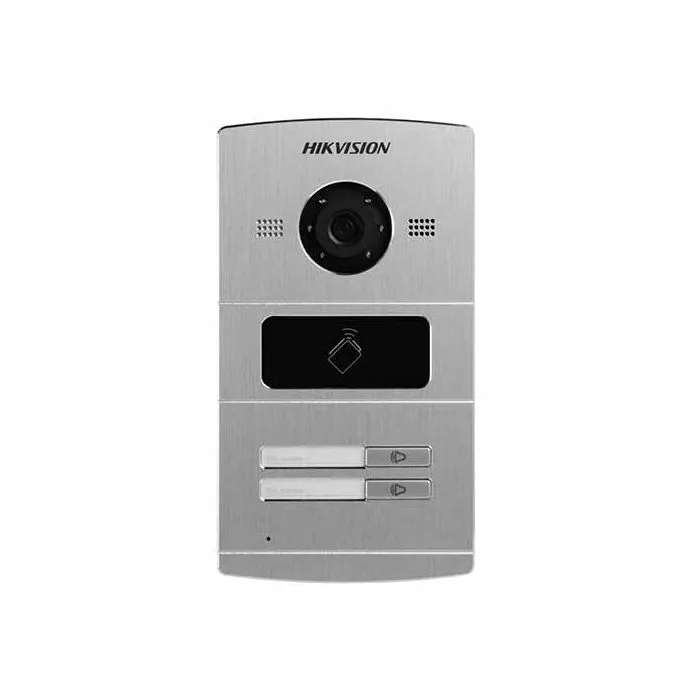

Hikvision IP external station DS-KV8202-IM 2 buttons (calls) two-way communication, equipped with a 1.3Mpx CMOS camera with night illuminator and integrated card / badge reader, standard MIFARE, for door opening. Functioning capacity with reed contact and signaling when the door is open too long. The device works with video door phones and other panels operating in the Hikvision IP standard.
Recessed mounting type with IP65 Waterproof protection degree. Protected against tampering. 12V DC or PoE 24V power supply.
Sensor:
1.3 Mpx CMOS
LED illuminator:
No
IR illuminator:
Yes
Compatibility:
Hikvision IP Video Doorphones
proximity reader built-in:
Access control cards - Mifare
UTP category:
UTP cat. 5e
Alarm inputs:
4 pcs
Relay outputs:
1 pcs NO/NC
RS-485:
Yes
Ethernet:
1 x RJ-45 - 10/100 Base-T
Main features:
2 x Doorbell button,
Bidirectional communication,
Microphone built-in,
Speakers built-in,
Tamper detection - removing from mounting surface,
Ability to work with reed switch and signalling the door being opened too long
Operation temp:
-40 °C ... 70 °C
Power supply:
12 V DC / 1 A,
24 V PoE
Housing:
Aluminum / Plastic, Waterproof
"Index of Protection":
IP65
Color:
Silver
Weight:
0.52 kg
Dimensions:
182 x 100 x 33 mm
Supported languages:
English
Manufacturer / Brand:
HIKVISION
SAP Code:
305300113
