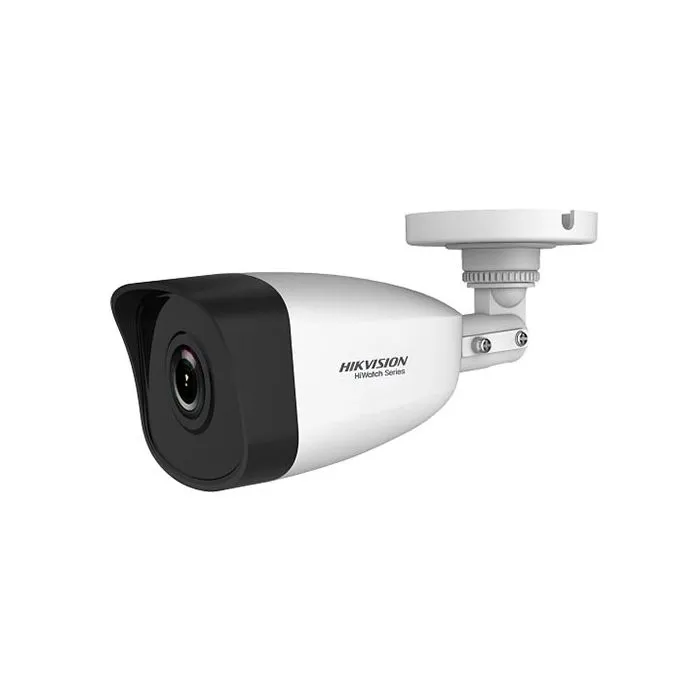

Hikvision HWI-B180H Hiwatch series IP camera bullet UHD 4K 8Mpx 2.8mm h.265+ Poe Onvif IP67

Name: Hikvision HWI-B180H Hiwatch series IP camera bullet UHD 4K 8Mpx 2.8mm h.265+ Poe Onvif IP67
Brand: HIKVISION
SKU: HWI-B180H
Price: 99.14 EUR
Availability: OutOfStock

Out of stock

SKU: HWI-B180H

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

IP camera bullet Hiwatch series Hikvision sku. HWI-B180H, 8.0 Megapixel UHD 4K resolution (3840 × 2160p), 2.8mm fixed lens (108° viewing angle) and PoE power technology. OSD menu with adjustable functions: ATW, AWB, AGC, BLC, DWDR, 3D-DNR, brightness, sharpness, mirror. Very easy operation by Internet Explorer browser allows the users to convenient and remote support, and also remote management of the camera. Included camera software enables management and integrated monitoring of many network cameras. Bullet camera CCTV with with metal and plastic structure in white color, can be installed indoors or outdoors (Waterproof IP67) with Infrared illuminator with REAL range up to 30M night vision. The 3-Axis integrated camera bracket has a regulation in all three planes, which allows to turn the camera to any direction.

Main characteristics

1/2.8” CMOS progressive scan 8.0 Megapixel
Video Compression support H.265+/H.265/H.264+/H.264 - Sub-stream: H.265/H.264/MJPEG
Video resolution - Max. 12.5fps@8M(3840×2160); 20fps@5M(2592×1944); 25fps@4M/2M/1.3M(2688×1520 / 1920×1080 / 1280×720).
OSD functions - Real WDR 120dB, Day/Night(ICR), 3D-DNR, Mirror, AWB, AGC, BLC, brightness, sharpness, mirror, privacy mask.
Multiple network monitoring: Web viewer, IVMS-4500, HIK-Connect
2.8mm fixed lens - EXIR IR LEDs Length max. 30m
Plastic and metal structure with IP67 Waterproof protection degree.
Compatibility protocol ONVIF, PSIA, CGI, ISAPI

Data sheet

Standard:	TCP/IP
Sensor:	1/2.8" Progressive Scan CMOS
Matrix size:	8.0 Mpx
Scanning system:	Progressive
Resolution:	3840 x 2160 - 8 Mpx 2592 x 1944 - 5 Mpx 2688 x 1520 - 4 Mpx 1920 x 1080 - 2 Mpx 1280 x 720 - 1.3Mpx
Operation modes:	Main Stream rate 50Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720). 60Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720). Extra Stream rate 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360). 60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360).
Lens:	2.8mm
View angle:	Horizontal FOV - 108° Vertical FOV - 60° Diagonal FOV – 127°
Range of IR illumination:	30 m
S/N ratio:	> 52 dB
RS-485 interface:	No
Image compression method:	Main stream: H.265+/H.265/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Alarm inputs / outputs:	No
Audio:	No
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP
WEB Server:	Built-in
Memory card slot:	No
Max. number of on-line users:	20
Main features:	DWDR - Digital Wide Dynamic Range 3D-DNR - Digital Noise Reduction ICR - Movable InfraRed filter BLC - Back Light Compensation HLC - High Light Compensation (spot) AGC - Automatic Gain Control Auto White Balance
Power supply:	12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Mobile phones support:	Porta: 8000 o accesso via cloud Android: Applicazione gratuita iVMS-4500 o Hik-Connect iOS (iPhone): Applicazione gratuita iVMS-4500 o Hik-Connect
Default IP address:	192.168.1.64
Default admin user / password:	admin / -
Web browser access ports:	80
PC client access ports:	Port: 8000 or cloud access - iVMS-4200 application
Mobile client access ports:	8000
Port ONVIF:	80
Housing:	Bullet - Metal & plastic
Color:	White
"Index of Protection":	IP67
Operation temp:	-30°C ... + 60°C (-22 °F to 122 °F), humidity: 95%
Weight:	0.270 kg
Dimensions:	181.6 mm × 71.4 mm × 66.7 mm (7.1" × 2.8" × 2.6")
Manufacturer / Brand:	HIKVISION
SAP Code:	311317923
