Hikvision HWP-N2204IH-DE3 Hiwatch series mini speed dome camera IP ptz 2mpx 2.8~12mm osd poe slot sd IP66 IK10

Name: Hikvision HWP-N2204IH-DE3 Hiwatch series mini speed dome camera IP ptz 2mpx 2.8~12mm osd poe slot sd IP66 IK10
Brand: HIKVISION
SKU: HWP-N2204IH-DE3
Price: 135.64 EUR
Availability: OutOfStock

Out of stock

SKU: HWP-N2204IH-DE3

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

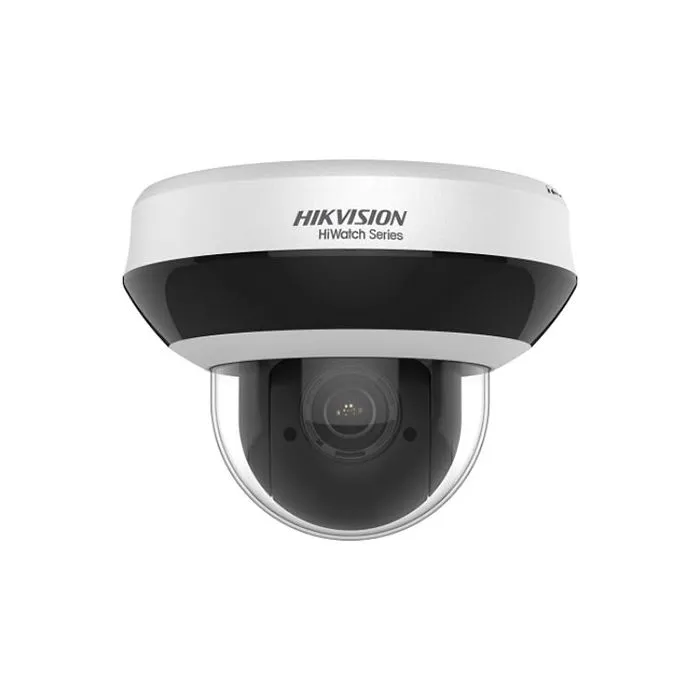

Vandalproof mini speed dome camera IP PTZ camera Hiwatch series Hikvision sku. HWP-N2204IH-DE3, 2.0 Megapixel HD resolution FULL HD 1080p, 2.8~12mm motorized lens (109° ~ 34° viewing angle). OSD menu with adjustable functions: ATW, AWB, AGC, BLC, Real WDR 120dB, 3D-DNR, brightness, sharpness, mirror, digital zoom 16x. Very easy operation by Internet Explorer browser allows the users to convenient and remote support, and also remote management of the camera. Included camera software enables management and integrated monitoring of many network cameras.

Dome CCTV camera with with metal structure "Vandalproof IK10" in white color, can be installed indoors or outdoors (Waterproof IP66) with Infrared illuminator with REAL range up to 20M night vision. The dome shape makes the product installable on the ceiling or wall.

Main characteristics

1/2.8” CMOS progressive scan 2.0 Megapixel
Video Compression support H.265+/H.265/H.264+/H.264 .
High Speed, remote real-time transmissions.
Motorized varifocal optics 2.8 ~ 12mm (4x) - IR infrared distance up to 20m
PoE power supply technology (power and video via network cable) or 12V DC
OSD menu: Real WDR 120dB, Day/Night(ICR), 3D-DNR, Mirror, AWB,AGC,BLC, Digital zoom 16x.
Remote multiple access: Web viewer, IVMS-4500, HIK-Connect
Micro SD memory slot - Support for Micro SD cards up to 128GB (local registration possible)
P2P installation and configuration - Scan QR code
Two-way audio function - Audio in / out interface
Protections: IP66 waterproof, Vandalproof IK10 & LPS Protection (Lightning Protection System)
OSD menu only in English
ONVIF compatibility protocol

Data sheet

Camera Module
Image Sensor	1/2.8" progressive scan CMOS
Min. Illumination	Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance	Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto/Manual
Day & Night	IR Cut Filter
Shutter Time	50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s
Digital Zoom	16×
Privacy Mask	24 programmable privacy masks
Focus Mode	Auto/Semi-automatic/Manual
WDR	120 dB WDR
Lens
Focal Length	2.8 mm to 12 mm, 4× optical zoom
Zoom Speed	Approx. 2 s (optical lens, wide-tele)
Field of View	Horizontal field of view: 109° to 34° (Wide-Tele) Vertical field of view: 57° to 19° (Wide-Tele) Diagonal field of view: 135° to 39° (Wide-Tele)
Working Distance	10 mm to 1500 mm (wide-tele)
Aperture Range	F1.6 to F2.7
IR
IR Distance	20 m
Smart IR	Support
PTZ
Pan and Tilt Range	Pan: 0° to 330°, Tilt: 0° to 90°
Pan and Tilt Speed	Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
Proportional Zoom	Support
Number of Preset	300
Power-off Memory	Support
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264
H.264 Type	Baseline Profile/Main Profile/High Profile
H.264+	Support
H.265 Type	Main Profile
H.265+	Support
Video Bitrate	32 Kbps to 16384 Kbps
Audio Compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
Smart Feature
Basic Event Detection	Motion Detection, Video Tampering Detection, Exception
Smart Event Detection	Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
ROI encoding	Main stream, sub-stream, and third stream respectively support two fixed areas.
Smart Record	ANR (Automatic Network Replenishment), Dual-VCA
Max. Image Resolution	1920 × 1080
Stream	Support three Streams
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream	50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement	3D DNR, HLC, EIS, Regional Exposure, Regional Focus
Network
Network Storage	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API	Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect
Simultaneous Live View	Up to 20 channels
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Client	iVMS-4200, Hik-Connect
Web Browser	IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Mini SD Memory Card	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Interface
Audio Input	1-ch
Audio Output	1-ch
Network Interface	1 RJ45 10 M/100 M Ethernet, PoE
General
Power	12 VDC & PoE Max.: 12 W (Max. 3.9 W for IR)
Working Temperature	-20°C to 60°C (-4°F to 140°F)
Working Humidity	≤ 90%
Protection Level	IP66 Standard, IK 10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	Aluminum alloy, PC, PC+ABS
Dimensions	Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Weight (approx.)	Approx. 0.53 kg (1.17 lb)
