HYBRID 450KIT FAAC - Hydraulic operator for residential and condominium swing leaf gates with a single-leaf max length up to 2 m (CBAC).
Hybrid Technology
Integrated encoder with anti crushing safety with reverse function upon detection of an obstacle
Effective stroke 311mm
New “multi position ” fi xing bracket
SAFEzone. Everything is simpler,everything is safer. Description of symbols OMNIdec: Electronic control board with integrated radio control decoding.2Easy: Control board for accessories with two-wire cabling, FAAC proprietary protocol.

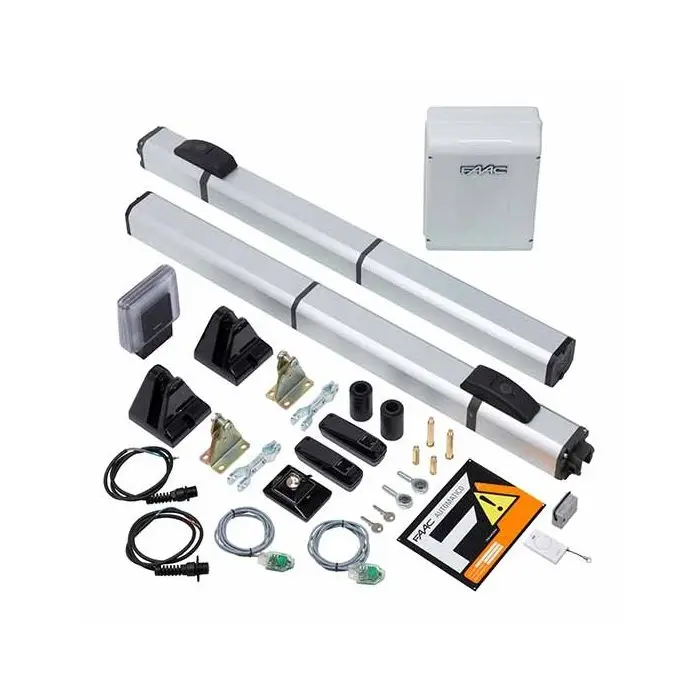

THE KIT CONTAINS
Q.ty Description Item code
2
24V Hydraulic operator S450H CBAC
1
Control unit E 024S with enclosure
790286
1
Frequency module XF 433
319006
1
Two-channel transmitter XT2 433 SLH LR
787007
1
Flashing lamp FAACLIGHT 24V
410024
1
Pair of photocells XP20B D
1
Key-operated push-button T10 E
401019001
(40101 9001)
Power supply: 230 V ac 50 (60) Hz
Motor Voltage: 24Vdc - 36Vdc
Absorbed Power (w): 60 (nominal) 288 (max)
Rod extension speed: > 2.5cm/sec (E124) >2.0cm/sec (E024S)
Pump fl ow rate: 1.5 l/min (E124)
Traction and thrust force: 500 daN (E124) 360 daN (E024S)
Operating ambient temperature: -20 °C to +55 °C
Thermal protection on motor winding: -
Weight: 7.1kg (CBAC)
Protection class: IP 55
Dimensions (L x D x H) in mm: 1113 x 85 x 119
Ean
8055195002416
Shipping
Shipping 24/48H
Warranty
2 year warranty
Type of Gate
Swing gate
Technology
hydraulic
Motor type
Pistons
Power supply
24v
