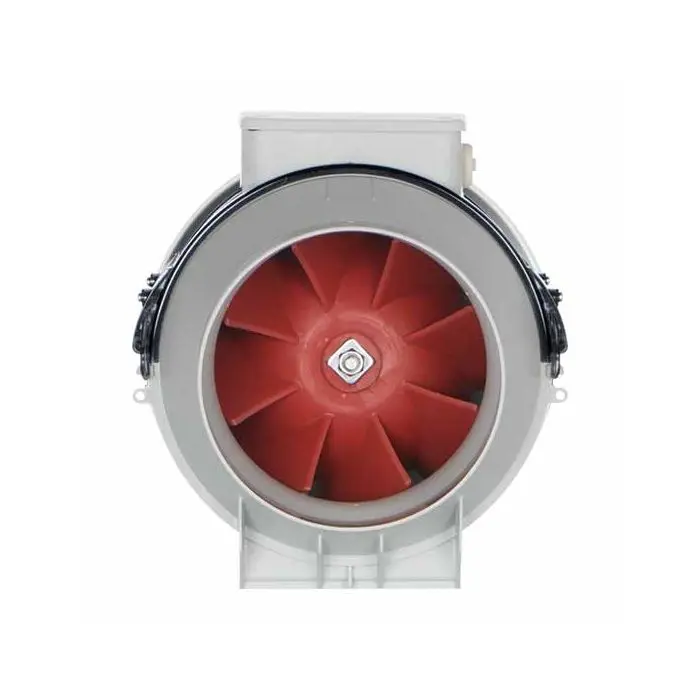

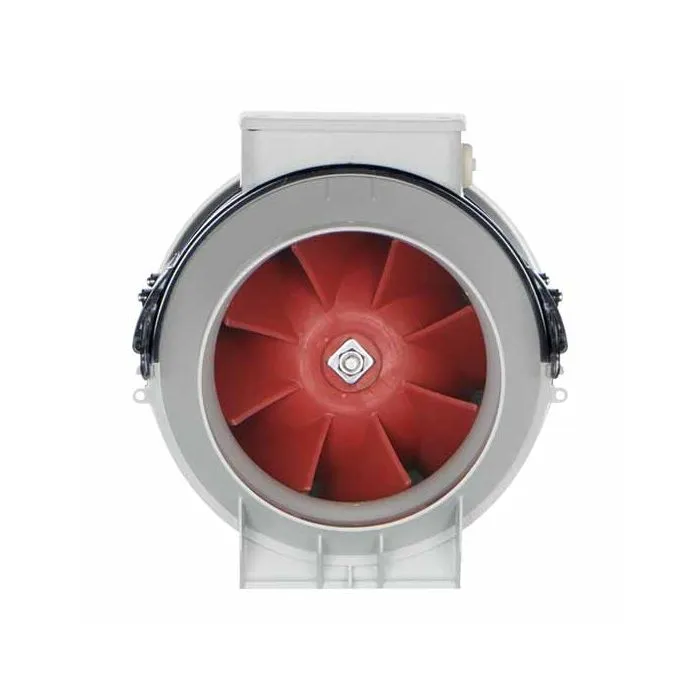

In-line mixed flow fans Vortice Lineo 100 V0 - sku 17001
Out of stock
|
SKU: VOR0000017001
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.
Call us on +39 081.759.88.86 from Monday to Friday, from 9.00 to 13.00 and from 15.30 to 18.00 or
In-line mixed flow fans Vortice Lineo 100 V0 - sku 17001
Product description
Material: self-extinguishing plastic resin (self-extinguishing capability V0)
Nominal diameter 100 mm.
2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
Minimum air flow 180 m3/h
Maximum air flow: 255 m3/h
IMQ SAFETY and IMQ PERFORMANCE certifications
Vortice speed controllers.
Absorbed power 1st speed (W): 20
Absorbed Power max (W): 23
Frequency (Hz): 50
Insulation Class: II°
IP Waterproof rating: 44
Max ambient temperature for continuous operation (°C): 60
Max. absorbed Current at max. speed (A): 0,11
Max. absorbed Current at min. speed (A): 0,09
Max. absorbed power at max speed (W): 23
Nominal Diameter (mm): 100
Voltage (V): 220-240
Weight (Kg): 1,80
Delivery 1st speed (l/s): 50
Delivery 1st speed (m³/h): 180
Max delivery at max speed (l/s): 70,8
Max delivery at max speed (m³/h): 255
Pressure - 1st speed (mmH20): 13
Pressure - 1st speed (Pa): 127,5
Pressure max - max speed (mmH20): 16,5
Pressure max - max speed (Pa): 161,9
RPM max: 2030
RPM min: 1520
Sound pressure level Lp [dB (A)] 3m - max speed: 39,4
Sound pressure level Lp [dB (A)] 3m - min speed: 30,7
Shipping
Shipping 24/48H
Colore
Gray
Warranty
2 year warranty
Ean
8010300170015
Smart home
No
