Infrared heater lamp 3 settings Vortice THERMOLOGIKA DESIGN - sku 70003

Name: Infrared heater lamp 3 settings Vortice THERMOLOGIKA DESIGN - sku 70003
Brand: VORTICE
SKU: VOR0000070003
Price: 116.32 EUR
Availability: InStock

In stock

SKU: VOR0000070003

Are you a Reseller? Register Here

Description

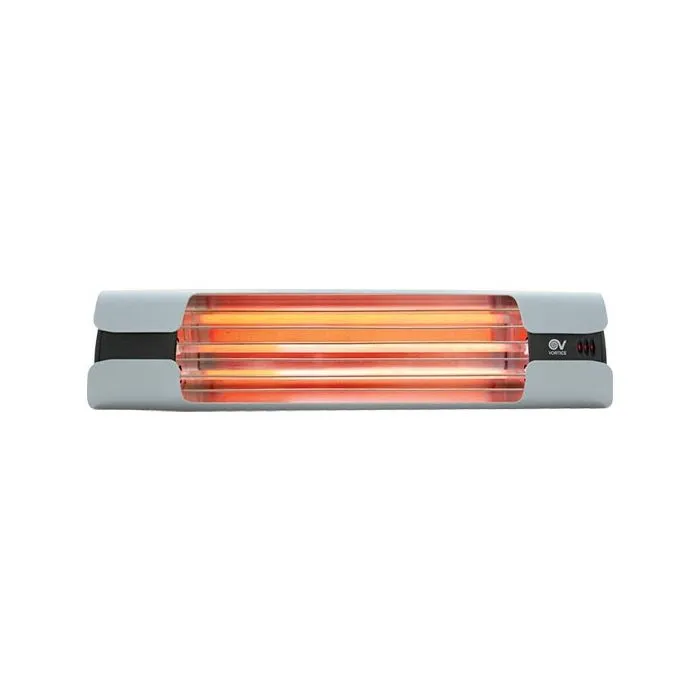

Vortice infrared lamps are designed with black aluminum sides and gray sheet metal shells. Equipped with three 600 W lamps each, they can be controlled individually via external switches. A pull switch allows you to select three power levels (600/1200/1800 W). The lamps can be installed on the wall and tilted 20° to direct the heat. It is possible to couple two lamps with an optional wiring kit (code 22496).

Data sheet

Max absorbed current (A) 7.8 Frequency (Hz) 50-60
Protection Grade IP X4
Class I insulation
Weight (Kg) 2.4
Max absorbed power (W) 1800
Voltage (V) 230
1st Power (W) 600
2nd Power (W) 1200
3rd Power (W) 1800
Control with remote option
Room temperature control with presence detection
Manual two or more phase heating power without room temperature control
Side panels in die-cast aluminum painted in black
Shells in light grey painted sheet metal
Grill made with stainless steel rods
Anchoring bracket in painted sheet metal
3 infrared lamps with a unit power of 600 W
It is possible to control the individual lamps using external switches by excluding the switch and making the connections to the appropriate terminals.
Pull switch for on/off and for choosing the 3 electric powers (600/1200/1800 W).
Wall-mounted using the supplied bracket and tiltable by 20° to conveniently direct the infrared rays towards the point to be heated, a safety screw ensures the robustness of the anchoring.
Possibility of coupling two lamps in series or in parallel using a special bracket kit complete with wiring box (optional code 22496).
