Kit Came U2313 BX-78 Automation for sliding gate 800KG 220V + 6M Galvanized Rack
Out of stock
|
SKU: 001U2313-6CGZ
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.
Call us on +39 081.759.88.86 from Monday to Friday, from 9.00 to 13.00 and from 15.30 to 18.00 or

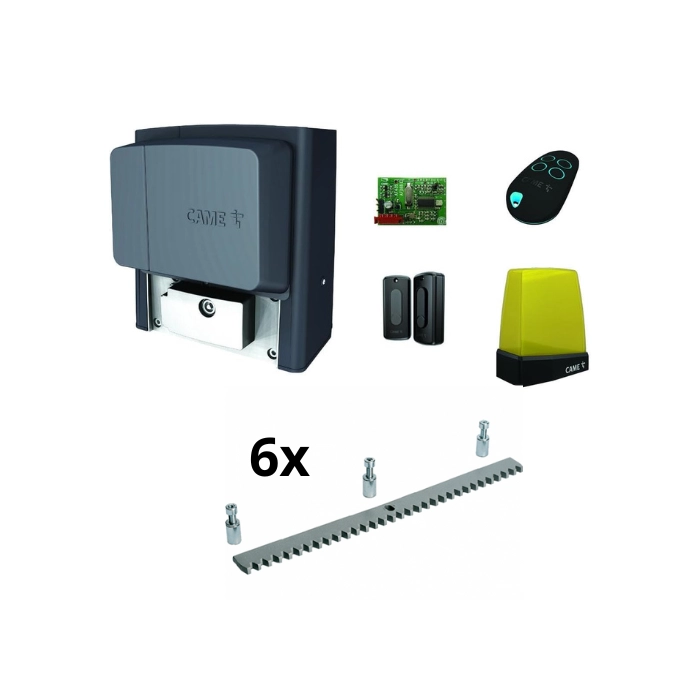

Complete system with 230V AC gearmotor for sliding gates up to 800 kg. Tested according to EN 12453 - EN 12445 standards
Item number Description Quantity
001AF43S Plug-in radio card with 433.92 Mhz superheterodyne
1
801MS-0030 Automation complete with electronic card, radio decoding ...
1
001DIR-10 Pair of monodirectional infrared ray photocells (P ...
1
001KLED 230V LED signaling flasher
1
806TS-0102 4-CHANNEL TOPD4FKS dual-frequency transmitter
1
Memory MEMORY ROLL came for saving settings
1
001TOP-A433N Antenna at 433.92 Mhz
1
001TOP-RG58 RG58 cable for antenna connection
5 m
009CGZS Galvanized rack with holes and spacers module 4 30x8mm
6 m
Note: Gate plate included
MODELS 801MS-0030 Degree of protection (IP) 44 Power supply (V - 50/60 Hz) 230 BC Motor power (V) 230 AC 50/60 Hz Absorption (A) 2.4 Power (W) 300 Maneuvering speed (m/min) 10 Intermittency/Work (%) 30 Thrust (N) 800 Operating temperature (°C) -20 ÷ +55 Motor thermal protection (°C) 150
Ean
Non Applicabile
Shipping
Shipping 24/48H
Warranty
2 year warranty
Type of Gate
Sliding gate
Gate leaf weigh
600-900 kg
Pinion type
Modul 4
Sliding Gates Series
Bx
Power supply
230v
Kit automazione scorrevole U2313 Came BX-78 800KG 230V + 6M Cremagliera zincata
automatisme hs à la mise sous tension, carte électronique prise en garantie
Review by
Stephen Viale ,
06/05/2019
Kit automazione scorrevole U2313 Came BX-78 800KG 230V + 6M Cremagliera zincata
ok
Review by
Feedaty ,
08/09/2016
