Kit Cardin KT-SLEVO600 Kit Sliding gate automation 600Kg 230V ex.K-SLEVO600
In stock
|
SKU: KT-SLEVO600
Loading...
Shipping expected from
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.
Call us on +39 081.759.88.86 from Monday to Friday, from 9.00 to 13.00 and from 15.30 to 18.00 or

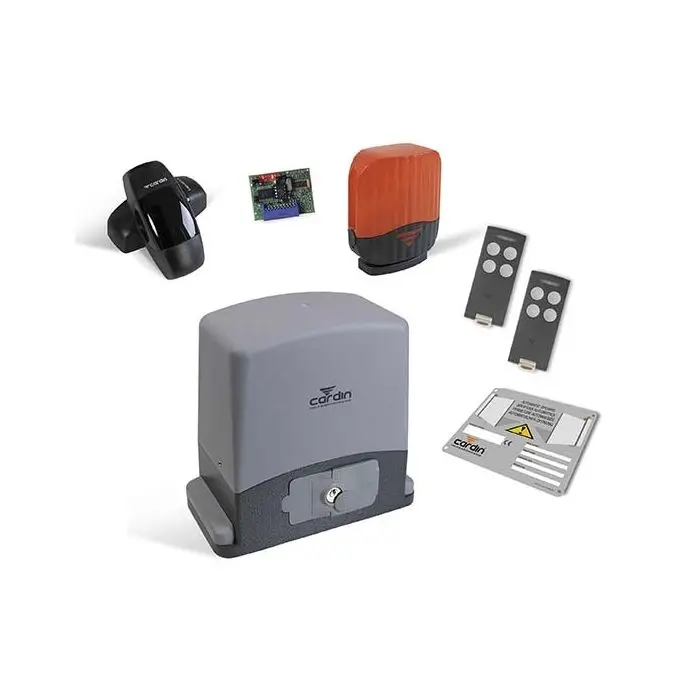

The kit contains all the command, control and safety devices required to carry out a residential installation for medium to small size sliding gates with a maximum weight of 600kg.
THE KIT CONTAINS
Qty Description Model / SKU
1
Self-locking sliding gate motor with an encoder-controlled 24Vdc motor and magnetic travel limits. In-built electronic programmer.
SLEVO600
1
2-channel receiver card 433MHz open collector, slot-in card.
RSQ504OC2
2
4-channel transmitters 433MHz FM rolling code
TXQ504C4
1
Pair of surface-mount photoelectric Cells with adjustable lens, range 25m.
VEDO 180
1
LED Warning light 24V – 230V with an in-built aerial
ICON
1
International Warning sign in PP, multi-language.
TARGA-INT
Model: SLEVO600
Power supply (Vac): 230
Frequency (Hz): 50
Nominal electrical input (A): 1,8
Power input (W) 400
Duty cycle (%): 40
Drag speed (m/min): 10
Torque max. (Nm): 21
Operating temperature range (°C): -20°...+55
Protection grade (IP): 44
MOTOR DATA
Motor power supply (V): 230Vac
Maximum power yield (W): 800
Maximum electrical input (A): 3,4
OPTIONAL RECEIVER CARD
The product range is factory set for the insertion of an open collector receiver card that guaranteescompatibility with all the radio control series available in the Cardin catalogue.
Ean
7427129127020
Shipping
Shipping 24/48H
Warranty
2 year warranty
Type of Gate
Sliding gate
Gate leaf weigh
300-500 kg
Pinion type
Modul 4
Power supply
230v
