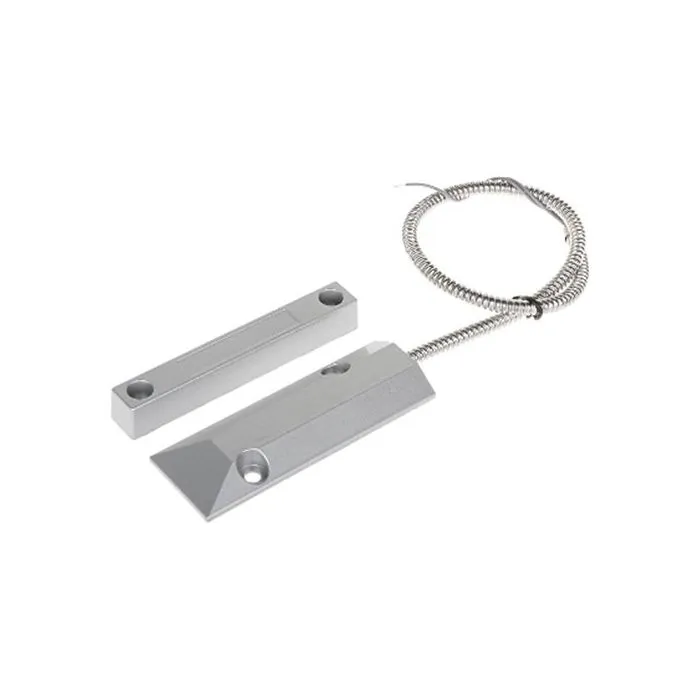

The magnetic contacts can be used wherever required for controlling the status of doors, windows and/or other movable elements, e.g. for protection or monitoring of access to particular sites, spaces, facilities, in automatic control systems, etc.
Detection:
Opening the door or window
Maximum switching voltage:
20 V
Maximum switching current:
10 mA
Make distance:
40 mm
Break distance:
65 mm
Main features:
Rugged, metal sealed body
NC output
Length of the cables : 40 cm
The cables are protected with a metal spiral tube with a length of 36.5 cm
Color:
Silver
Weight:
0.17 kg (total)
Dimensions:
105 x 37.5 x 9.5 mm - Reed switch 106 x 15.5 x 15.2 mm - Magnet
Guarantee:
2 years
https://www.liberotech.com/ww/metal-housing-magnetic-contact-for-gate-door-or-windows-1pcs-sku-90oc55.html90OC55Metal housing magnetic contact for gate door or windows 1pcs - sku 90OC55<p>The magnetic contacts can be used wherever required for controlling the status of doors, windows and/or other movable elements, e.g. for protection or monitoring of access to particular sites, spaces, facilities, in automatic control systems, etc.</p>
<p>The contact is designed for surface mounting.</p>https://www.liberotech.com/media/catalog/product/_/9/_9_0_90oc55.jpg4.01instock4.014.0100NO BRAND000https://www.liberotech.com/media/catalog/product/_/9/_9_0_90oc55.jpg/Alarms and security/Alarms and security/Alarm sensors and contacts/New Products1687857655000590500
