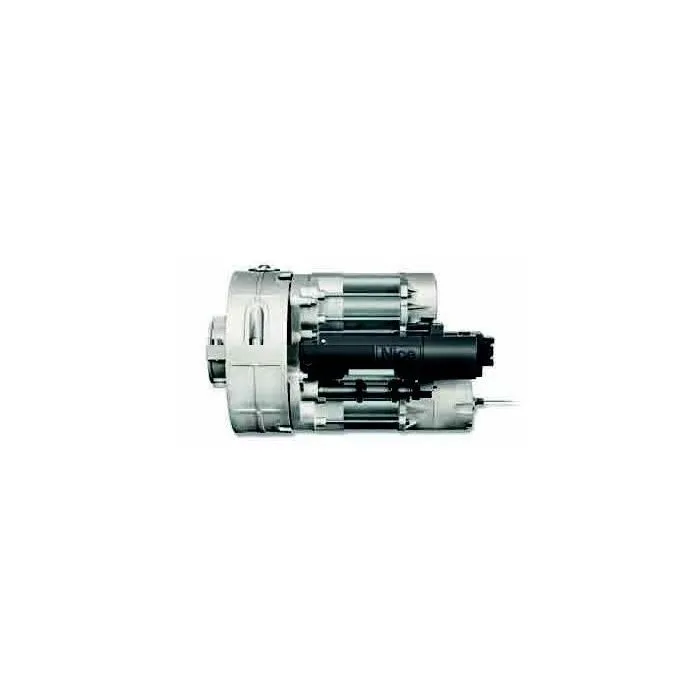

NICE RONDO RN2480 garage shutter motor axis 76 bi-irreversible motor with electric brake 360kg

Name: NICE RONDO RN2480 garage shutter motor axis 76 bi-irreversible motor with electric brake 360kg
Brand: NICE
SKU: RN2480
Price: 287.55 EUR
Availability: InStock

In stock

SKU: RN2480

Are you a Reseller? Register Here

Description

Nice RN2480 GARAGE motor for shutter for 76mm axis shafts. Dual motor system with lifting force up to 360kg, limit switch and electro-brake

Easy to program: Simple adjustment of the mechanical limit switches thanks to the new white flap that allows you to easily disengage the small wheels used to adjust the opening and closing positions of the shutter.

Easy to install: A few simple steps to effectively install the gearmotor on the spring shaft. Furthermore, thanks to the crown adapters and the spring shaft adapters available, the product is suitable for different installation needs.

Easy to use: Easy to use release system to lock and unlock the shutter from the ground, release cable 7 meters long for models with double motor

Safe: All models in the range are equipped with an electro-brake. In the event that there is a black out and the shutter is open, there is no risk of falling.

Versatile: Thanks to the new mechanical limit switch system, the automation can be installed on shutters up to 7 meters high.

Data sheet

Power supply (Vac 50 Hz) *	230v
Absorption A	5.4
Power W.	1260
Speed (rpm)	9
Torque (nm)	400
Continuous Run Time (min)	4
Limit switch (mt)	7
Shaft diameter (mm)	76
Crown diameter (mm)	240
Electro brake	YES
Release cable (mt)	7
Power cable (length in mt)	4x1 mm2 (6 m)
Degree of protection (IP)	20
Dimensions (mm)	240x370
Weight	17

More Information

Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	2 year warranty
Motor Power	from 220 to 400kg
