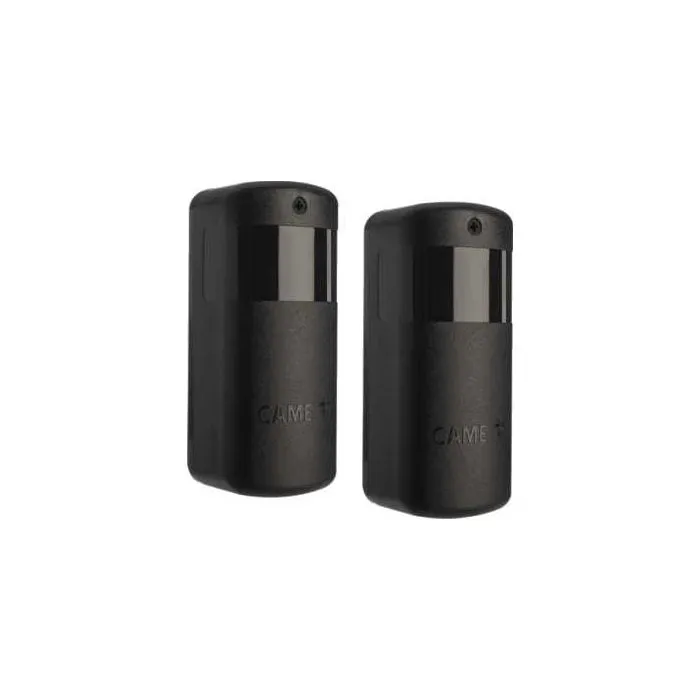

Pair of photocells DXR CAME DXR20CAP adjustable 20mt 806TF-0030 gate automation

Name: Pair of photocells DXR CAME DXR20CAP adjustable 20mt 806TF-0030 gate automation
Brand: CAME
SKU: 806TF-0030
Price: 61.75 EUR
Availability: InStock

In stock

SKU: 806TF-0030

Are you a Reseller? Register Here

Description

New version of CAME DXR photocells Synchronization of up to 8 pairs of photocells without disturbance and without wire connection between transmitter and receiver.

Adjusting the range of the infrared beam.

Filter function to avoid false detections due to bad weather and solar interference.

Infrared beam adjustable up to 180 ° with respect to the vertical axis

Data sheet

MODELS 806TF-0030 806TF-0040 806TF-0060

Degree of protection (IP)	54	54	54
Power supply (V)	12-24 AC - DC	12-24 AC - DC	12 - 24 AC - DC (RX)
Batteries	-	-	1 x CR123A
Battery capacity (mAh)	-	-	1700
Absorption (mA)	40	40	-
Max output contact capacity at 24 V (A)	0.5	0.5	0.5
Operating temperature (° C)	-20 ÷ +55	-20 ÷ +55	-20 ÷ +55
Material	ABS	ABS - Aluminum	ABS
