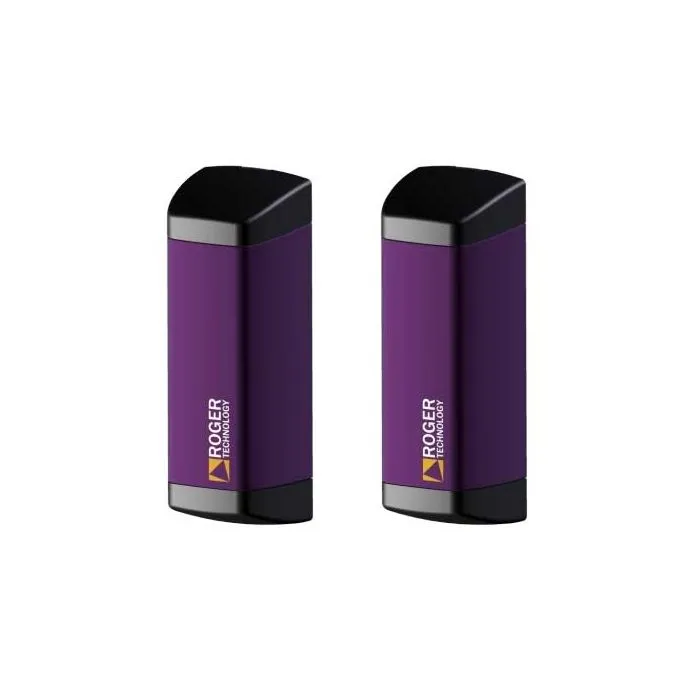

Pair of synchronized photocells series M90 adjustable version

Name: Pair of synchronized photocells series M90 adjustable version
Brand: ROGER
SKU: M90/F2ESO
Price: 31 EUR
Availability: OutOfStock

Out of stock

SKU: M90/F2ESO

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

The photocells M90 /F2ES/O which can be synchronised are presence detectors with infra-red technology powered by 12/24V AC/DC, which allow obstacles to be detected which are present on the optical axis between the transmitter (TX) and receiver (RX), can be used for automatic inputs.

The new Roger Series M90 photocells are designed in such a way as to increase the safety of the system and simplify their installation with several advantages.

The adjustable version M90/F2ES/O (210 ° along the horizontal axis and 15 ° along vertical axis) ideal for installations with fixed surfaces and that are not parallel to each other

Innovative design ideal for any architectural form.
Designed for installation in very narrow spaces.
Special covers to protect the screws with an scratch-proof support release system.
Ability to synchronise two photocell pairs.
Detector using LEDs of the quality of the signal to optimise the centring of the photocells.
Ability to adjust the range distances on two levels.

Mod. M90/F2ESO

Data sheet

Technical specifications

Protection level:	IP55
Standard power:	12/24V ac 50Hz - 12/24V dc
Absorption:	TX 19mA - RX 20mA
Maximum distance in open field:	10 - 15 m
Relay contacts max current:	0

More Information

Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	2 year warranty
Installation	a superficie

Reviews (0)
