Portable and wall-mounted fan heater three-phase motor with Mechanical timer Vortice CALDOPRO PLUS 5000 T - sku 70807

Name: Portable and wall-mounted fan heater three-phase motor with Mechanical timer Vortice CALDOPRO PLUS 5000 T - sku 70807
Brand: VORTICE
SKU: VOR0000070807
Price: 593.13 EUR
Availability: OutOfStock

Out of stock

SKU: VOR0000070807

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Electric convectors, single and three-phase, specifically designed for professional use in construction sites, warehouses, laboratories and, more generally, where high heating powers are required (up to 5 kW), combined with shock resistance qualities, water and dirt accumulation.

Product description

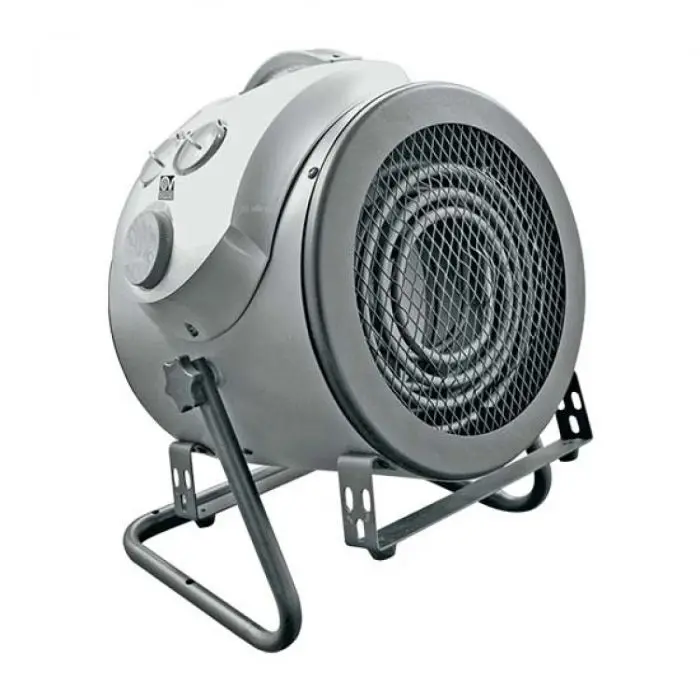

Cylindrical steel structure enclosed at the ends by air inlet and outlet grilles.
Steel grilles with vertical ribs.
Fan unit with single speed three-phase motor and 5-blade aluminium rotor keyed directly onto the motor shaft.
Tubular heating element rated 5000 W.
Control panel located on top of the main cylindrical casing, made of self-extinguishing ABS plastic rated V0, with painted finish and built-in carrying/positioning handle.
Mechanical timer, 180 minutes max, allowing delayed shutdown.
Rotary heat output selector with three settings: off, half-power, full power and fan only.
Auto-reset safety device, operating as thermal overload protective cutout mounted to the heating element.
Bent and painted steel feet, with antivibration mounts.
Power cord complete with moulded Schuko euro plug, length 1800 mm.
Bulb type room thermostat, able to guarantee greater reading accuracy.
IMQ safety certification.

Data sheet

Max absorbed current (A): 7,2 A
Frequency (Hz): 50
Insulation: 1st class
IP - rating: X4
Weight (Kg): 5,4
Absorbed Power max (W): 5000
Voltage (V): 400
Accumulator appliances with pilot flame: NO
Appliances with stand-by mode: NO
Auxiliary electricity consumption at minimum heat output - elmin (kW): 0,03
Auxiliary electricity consumption at nominal heat output - elmax (kW): 0,03
Auxiliary electricity consumption in stand-by mode - elSB (kW): 0,03
Control with limitation of operating time: NO
Remote control option: NO
Control with black globe thermometer: NO
Room temperature control with detection of open windows: NO
Room temperature control with presence detection: NO
Adaptive start control: NO
Seasonal energy efficiency -? S (%): 36
Thermal power with two or more manual phases without room temperature control: NO
Single phase heat output without room temperature control: NO
Thermal power with room temperature control by mechanical thermostat: YES
Thermal power with electronic control of the room temperature: NO
Thermal power with electronic room temperature control and daily timer: NO
Thermal power with electronic room temperature control and weekly timer: NO
Continuous thermal power - Pmax, c (kW): 5
Minimum thermal power - Pmin (kW): 5
Nominal heat output - Pnom (kW): 5

More Information

Shipping	Shipping 24/48H
Colore	Gray
Warranty	2 year warranty
Ean	8010300708072
Smart home	No
