https://www.liberotech.com/ww/power-supply-distributor-12-24v-12output-x-1a-rack-10.html90LZ-12C/R10Power Supply Distributor 12/24V - 12output x 1A Rack 10"<div>

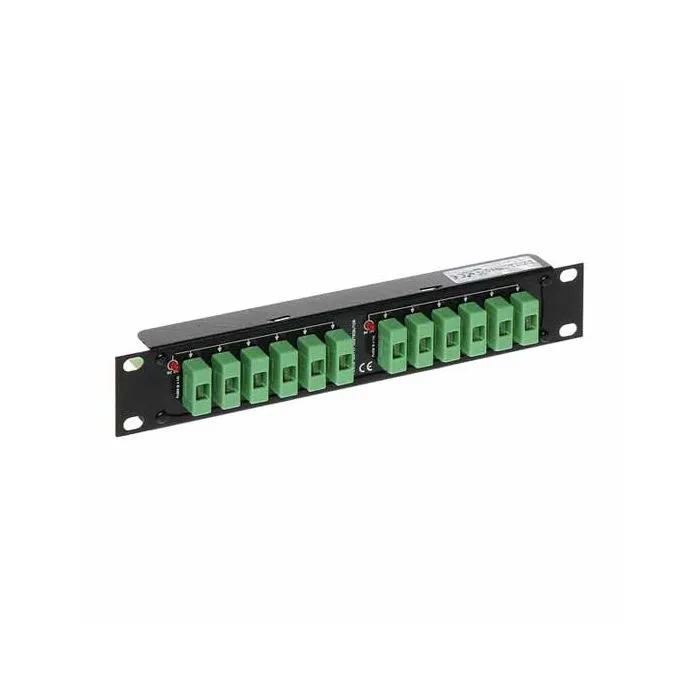

The 90LZ-12C/R10 is a passive device that enables power ordered distribution from one or several higher power units.</div>
<div>
</div>
<div>
If necessary the terminals can be connected in parallel. </div>
<div>
</div>
<div>
<strong>Specification</strong></div>
<ul>
<li>
Number of power outputs: 12 (2 x 6 outputs)</li>
<li>
Number of power inputs: 2 (one per each 6-outputs terminal)</li>
<li>
Maximal power voltage: 24 V DC (typical 12V)</li>
<li>
Maximal power supply current: 5 A (for single terminal)</li>
<li>
Max. output current for single output: 1 A</li>
<li>
Protection type: 12 x 1 A 5/20mm delayed fuse</li>
<li>
Power connectors type: - Input : Cable terminals / -Output : Cable terminals</li>
<li>
Operation temp: -50 °C ... 55 °C</li>
<li>
Permissible relative humidity: < 95 %</li>
<li>
Housing type: Rack 10", 1 U</li>
<li>
Weight: 0.22 kg</li>
<li>
Dimensions: 256 x 44 x 63 mm</li>
</ul>https://www.liberotech.com/media/catalog/product/_/9/_9_0_90lz12cr10.jpg27.71instock27.7127.7100NO BRAND000https://www.liberotech.com/media/catalog/product/_/9/_9_0_90lz12cr10.jpg/Video security/Video security/CCTV power suppliers16878578730001069300
