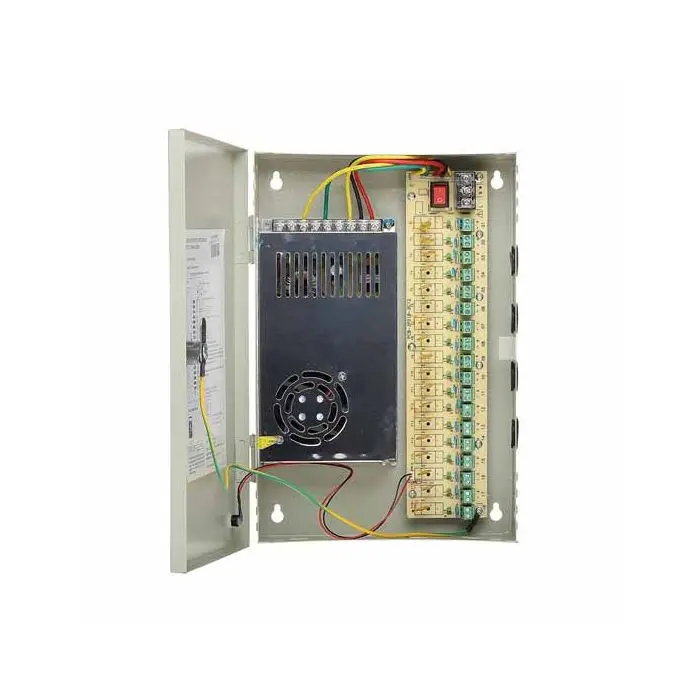

Power adapter is equipped with aesthetic, solidly made metal casing box. Adapter operation is indicated by LED placed on the casing box. The power supply adapter is stabilized and allows to connect up to 18 devices with max. current consumption of 1.1A for each output. Each power line is protected by a polymer fuse and has a LED indicator informing about output voltage presence. The adapter has the power off jumpers for each output.
9012V/21A/PA18 is a power supply that can be used for video surveillance systems, LED systems, etc. where it is essential to a centralized power supply, stabilized and protected. Attention! If the power adaptor is using for continuous work (24H) the rated current of the adaptor should be less than 80% of the maximal current. Please pay attention for proper cooling conditions of the power adaptor during work! Caution! The power supply adapter does not have a built-in current limiting.
Adapter type:
Switching
Output voltage:
12 V DC
Output voltage adjustment:
11 ... 13 V
LED indication:
Yes
Max. output current (total):
21 A
Max. output current for single output:
1.1 A
Input voltage:
230 V AC
Power:
252 W
Number of outputs:
18
Connector type:
Cable terminals
Housing type:
Metal, wall-mounted
Key closed:
Yes
Weight:
1.882 kg
Dimensions:
212 x 314 x 65 mm
https://www.liberotech.com/ww/rack-switching-adapter-12v-dc-21a-252w-18x1-1a-cctv.html9012V/21A/PA18Rack switching adapter 12V DC 21A 252W 18x1.1A CCTV<p>Rack switching adapter 12V DC 10A 252W 18x1.1A CCTV <strong>Mod. 9012V/21A/PA18 </strong></p>
<p>Power adapter is equipped with aesthetic, solidly made metal casing box. Adapter operation is indicated by LED placed on the casing box. The power supply adapter is stabilized and allows to connect up to 18 devices with max. current consumption of 1.1A for each output. Each power line is protected by a polymer fuse and has a LED indicator informing about output voltage presence. The adapter has the power off jumpers for each output.</p>
<p>9012V/21A/PA18 is a power supply that can be used for video surveillance systems, LED systems, etc. where it is essential to a centralized power supply, stabilized and protected. Attention! If the power adaptor is using for continuous work (24H) the rated current of the adaptor should be less than 80% of the maximal current. Please pay attention for proper cooling conditions of the power adaptor during work! Caution! The power supply adapter does not have a built-in current limiting.</p>https://www.liberotech.com/media/catalog/product/_/9/_9_0_9012v-21a-pa18.jpg35.5outofstock35.535.500NO BRAND242https://www.liberotech.com/media/catalog/product/_/9/_9_0_9012v-21a-pa18.jpg/Video security/Video security/Video security accessories/CCTV power suppliers/Video security/Video security accessories16878577400007063801
