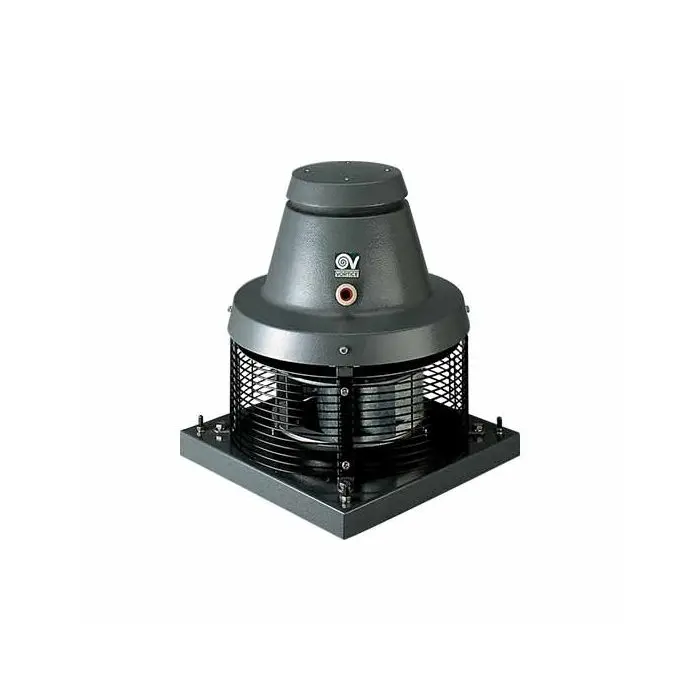

Radial chimney fan Vortice Tiracamino TC 10 M - sku 15000

Name: Radial chimney fan Vortice Tiracamino TC 10 M - sku 15000
Brand: VORTICE
SKU: VOR0000015000
Price: 575.57 EUR
Availability: InStock

In stock

SKU: VOR0000015000

Are you a Reseller? Register Here

Description

Radial chimney fan Vortice Tiracamino TC 10 M - sku 15000

Product description

Base manufactured from phosphated pressed steel, epoxy powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
Aerodynamically contoured inlet port for optimum performance, fashioned as a single unit with the base and gauged to optimize air flow.
Pressed steel motor cover: pickled and phosphated surface, polyester powder coated and oven baked finish, colour grey, with hammered texture.
Asynchronous motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller with dynamically balanced self-cleaning aluminium blades (UNI ISO 1940, Point 1 – Class 6.3).
Maximum airflow: 750 m3/h.
Protection grille with anti-bird rings (in accordance with UNI ISO 13857 standard), made of electrically welded steel; epoxy paint finish, colour black.
Sub-frame for fixing the appliance to the flue stack.
Equipped with steel safety wire for anchoring the appliance once installed.
Designed for use at a continuous operating temperature of 200 °C.
Variable speed controller supplied as standard.

Data sheet

Absorbed Current max (A): 0,5
Absorbed Power max (W): 120
Frequency (Hz): 50-60
Insulation Class: I°
IP Waterproof rating: X4
Max absorbed Power at 60Hz (W): 150
Nominal Diameter (mm): 180
Voltage (V): 220-240
Weight (Kg): 14,3
Delivery max (l/s): 208
Delivery max (m³/h): 750
Portata max 60Hz (l/s): 252
Portata max 60Hz (m³/h): 910
Pressione max 60Hz (mmH2O): 26
Pressione max 60Hz (Pa): 255
Pressure max (mmH2O): 19
Pressure max (Pa): 186
RPM: 1400
RPM max: 1400
Sound Pressure level Lp [dB (A)] 3m: 52

More Information

Shipping	Shipping 24/48H
Colore	Black
Warranty	2 year warranty
Ean	8010300150000
Smart home	No
