RBE4230 External four-channel receiver, for radio controlling operators CAME 806RV-0020

Name: RBE4230 External four-channel receiver, for radio controlling operators CAME 806RV-0020
Brand: CAME
SKU: 806RV-0020
Price: 154.05 EUR
Availability: OutOfStock

Out of stock

SKU: 806RV-0020

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

CAME 806RV-0020

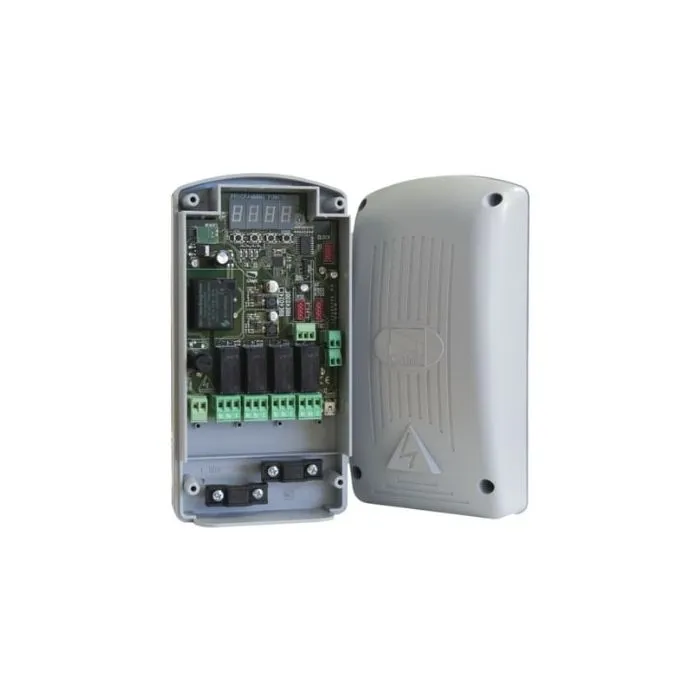

RBE4230 - Four-channel multi-user receiver module IP54, 120 - 230 V AC to store up to 3000 different users (codes), per series: TOP, TAM, ATOMO D, TWIN.

External four-channel receiver, for radio controlling operators and accessories. Multi-frequency (see table), stores up to 3,000 user/codes. It also manages the S5000/6000/7000 digital keypads and the TSP00 and LT001 sensor transponders. It features a four-digit display and a Memory Roll card for storing and saving data. You can remotely program and control the system: via the CRP, or, from a PC USB port, or by downloading free RBE-software

Transmitter compatibility table:

Frequency	AF card	Series
433.92 MHz	AF43S	Atom, Tam, Top, Twin, Keyboard s9000
868.35 MHz	AF868	Atom, Atp, Top

Data sheet

Degree of protection (IP) 54
Power supply (V) 120 - 230 AC
Frequency (Hz) 50/60
Standby consumption (W) 0.67 - 0.8
Max power (W) 3 - 3.2
Relay contact capacity - resistive load cosφ = 1 (A / V) 5/230
Relay contact capacity - inductive load (A / V) 1.5 / 230
ABS container material
Operating temperature (° C) -20 ÷ +55
Class of appliance II
Weight (kg) 0.6

More Information

Ean	8050456063533
Shipping	Shipping 24/48H
Warranty	2 year warranty
Remote controls Frequency	Dual Frequency
Channels number	4 ch
