Box 1 PZ

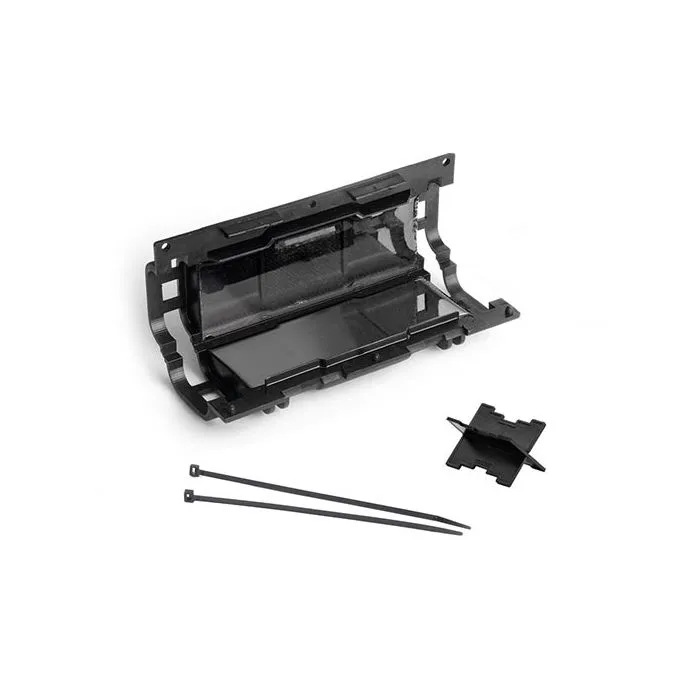

Straight or branch joint pre-filled with gel free connections for multi core cables up to 4 cores Raytech Clik 2 Fire

Name: Straight or branch joint pre-filled with gel free connections for multi core cables up to 4 cores Raytech Clik 2 Fire
Brand: RAYTECH
SKU: 301096-001
Price: 22.38 EUR
Availability: OutOfStock
Rating: 100 (1 reviews)

(1)

Out of stock

SKU: 301096-001

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Straight or branch joint pre-filled with gel free connections, for multi core cables up to 4 cores Raytech Clik 2 Fire

Data sheet

Product - sku.: Clik 2 Fire
Cable formation and conductor cross sections (n° x mm²) - Through or straight: 1 x 50 - 185 / 2 x 10 - 35 / 3 x 6 - 35 / 4 x 6 - 35.
Cable formation and conductor cross sections (n° x mm²) - 1 or 2 branch cables: 1 x 16 - 185 / 2 x 1,5 - 35 / 3 x 1,5 - 35 / 4 x 1,5 - 16.
Ø max cables (mm) - Through or straight: Ø 30 mm
Ø max cables (mm) - Branch: Ø 29 mm
No flame propagation: CEI 20-35 • IEC 60332-1 • HD405-1 (as applicable).
Gel: UL 94-HB
Casing mix: UL 94-V2
Degree of protection: IPX8
Operating temperature: 90°
Installation temperature: -40°C / +50°
Dimensions: 220 x 85 x 46 mm
Electrical performance: CEI EN 50393 with connectors complying with EN 61238-1 (with testing under water head and water between the cable cores) Class 2 in accordance with CEI 64-8.
