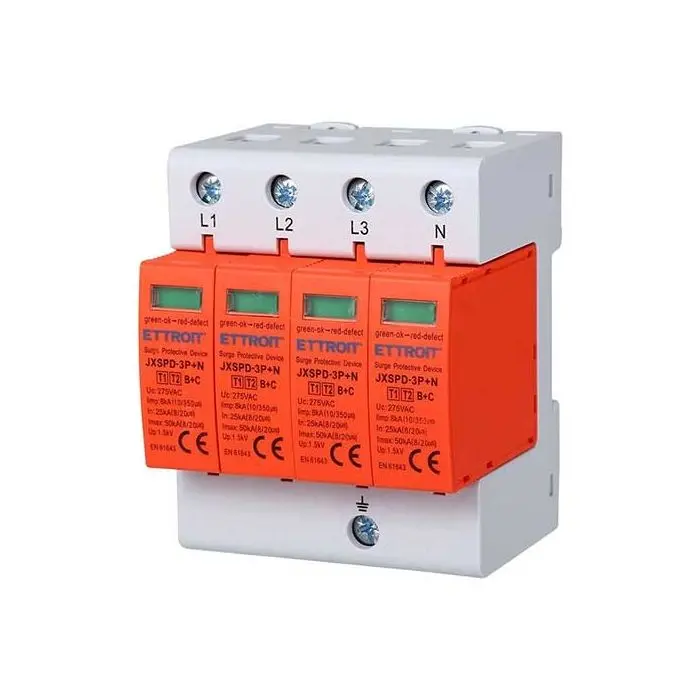

Surge Arrester Type 1+2, 220V AC, 3P+N, 4 DIN Rail Modules – Ettroit JXSPD-3P+N
The Ettroit JXSPD-3P+N surge arrester is a combined Type 1 and Type 2 device, designed for the protection of three-phase electrical systems with neutral (3P+N) in 220V AC networks.
Main technical features: SPD Type : Combined T1 + T2 (Class I + II)
Rated operating voltage (Un) : 220V AC
Maximum continuous voltage (Uc) : up to 275V AC for each pole
Rated impulse current (Iimp) : up to 12.5 kA per pole (10/350 µs)
Nominal discharge current (In) : 20 kA (8/20 µs)
Maximum discharge current (Imax) : 40 kA (8/20 µs)
Configuration : 3 Poles + Neutral (3P+N)
Status indicator : integrated (mechanical)
Connection : screw terminals for rigid or flexible conductors
Mounting : standard 35 mm DIN rail – Occupancy: 4 DIN modules
Housing : self-extinguishing, protection degree IP20 (IP40 when the panel is closed)
Rapid response : <25 ns
Applications: Ideal for main electrical panels in civil, tertiary and industrial environments, it guarantees high discharge capacity in the presence of atmospheric events (direct lightning strikes) and transient switching overvoltages.
Surge Protection Devices (SPD) - Type T1+T2, Occupies 4 DIN Modules Protects the system from voltage spikes or transient overvoltages. Uc:275V AC,In:25kA(8/20us),Imax:50kA(8/20us), Voltage protection level: 8KV
Ean
8059692409235
Shipping
Shipping 24/48H
Warranty
5 years warranty
Ampere
6A
Int. power Ka
4.5Ka
Classe A
No
Smart home
No
Module Type
Scaricatore di sovratensione
Number of modules
3
Voltage
AC:400Vac
Packaging
1
