Adapter type:
Switching
Power voltage:
100 ... 240 V AC
Output voltage:
12 V DC
Output voltage adjustment:
12 ... 15 V
Voltage tolerance:
± 1 %
Maximal load:
3.33 A
Output power:
40 W
Number of outputs:
2 pcs
Efficiency:
86 %
Housing type:
DIN
MTBF (Mean Time Between Faults):
301700 hours
Vibration resistance:
IEC60068-2-6, 10 ... 500 Hz max. 2 G for 90 minutes
Protections:
Short-circuit
Overvoltage
Overload protection
Operation temp. / Relative humidity:
-20 °C ... 70 °C / < 90 %
Weight:
0.26 kg
Dimensions:
40 x 90 x 100 mm

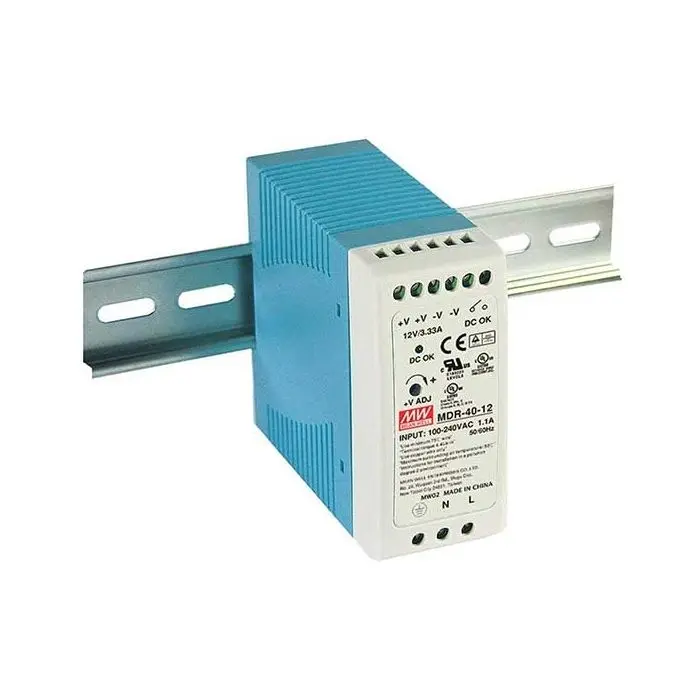

https://www.liberotech.com/ww/switching-power-supply-din-rail-40w-12v-dc-3-33a-meanwell-mdr-40-12.htmlMDR-40-12Switching power supply DIN-rail 40W 12V DC 3.33A Meanwell MDR-40-12<p>Switching adapter installed on the TS35/7.5 or 15 DIN rail, resistant to high operation temperatures (up to 70°C).<br /><br /></p>
<p><strong>Features</strong></p>
<ul>
<li>Directly on the DIN-rail mountable</li>
<li>Closed design, touch-proof screw terminals</li>
<li>Universal input</li>
<li>Overload protection through current limitation, auto recovery</li>
<li>Protected against short circuit, overload, over voltage</li>
<li>LED display for power-on</li>
<li>Low idle power</li>
<li>DC-OK relay output</li>
</ul>https://www.liberotech.com/media/catalog/product/_/m/_m_d_mdr-40-12.jpg25.86outofstock25.8625.8600MEANWELL000https://www.liberotech.com/media/catalog/product/_/m/_m_d_mdr-40-12.jpg6930103961052210540/Video security accessories/CCTV power suppliers/Video security accessories/LED power supplies1687857563000329500
