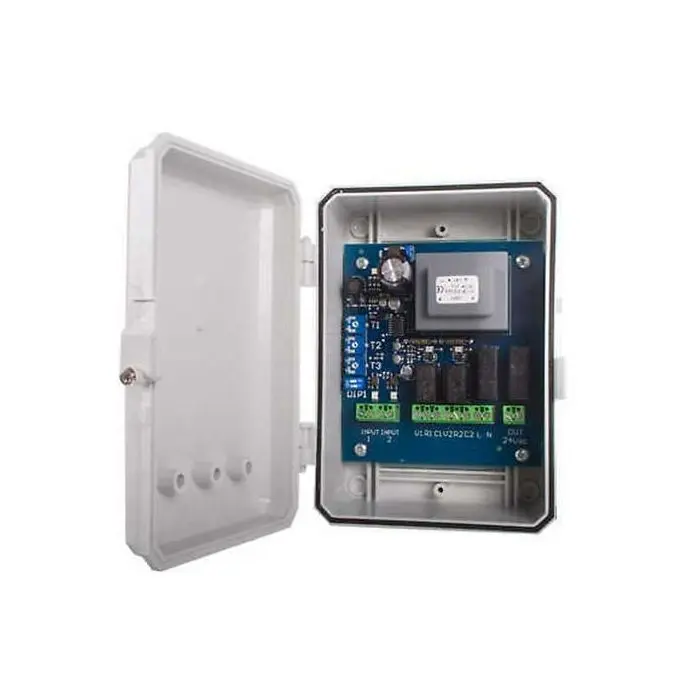

Traffic light control unit for 2 traffic lights with 2 lights

Name: Traffic light control unit for 2 traffic lights with 2 lights
Brand: NO BRAND
SKU: DC2SEM2L
Price: 101.5 EUR
Availability: OutOfStock

Out of stock

SKU: DC2SEM2L

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

The DC2SEM2L traffic light control unit can manage both traffic lights at 24V and traffic lights at 230Vac as these are driven by clean relay contacts. It has been designed for the management of 2 situations:

2 TRAFFIC LIGHTS WITH 2 LIGHTS in ONE SINGLE ALTERNATE SENSE , certainly the most classic and used in a narrow passage where only one car passes (garage, parking, residence etc.).
4 TRAFFIC LIGHTS COMBINED 2 TO TWO OPPOSED to manage a SIMPLE CROSSING , on one exit you control a road in both directions and on the other exit the road that intersects on both directions.

The traffic light control unit can operate with two operating logics, depending on the installation requirement:

Operation without detection devices (TIMED)
The alternation times of the phases in which the traffic lights are lit red or green are defined by the installer using the trimmers on board the control unit. The times of the phases are fixed, cyclical times, regardless of the volume of inbound or outbound traffic.

Operation with detection devices
The alternation times of the phases in which the traffic lights are lit red or green are defined by the installer using the trimmers on board the control unit.The difference is that it is the detection of vehicles on the corresponding entrances that activates the switch-ons of the traffic lights. This logic allows for better management of the volume of inbound and outbound traffic.

Data sheet

Power supply: 230 Vac -50/60 Hz (5 VA) (protection fuse 160 mA);
Auxiliary output: 24 Vac, 160 mA max. (protection fuse 160 mA);
Absorption max. supported by relays using 24 V traffic lights: 5 A;
Absorption max. supported by relays using 230 V traffic lights: 10 A;
Operating temperature: -20 ÷ +70 ° C;
IP grade of box (ABS V-0): IP 55;
Boxmeasure: 167 x 116 x 73 mm;

The control unit is compatible with any type of detection device that switches a NO contact into NC or vice versa. In our articles, for example, depending on the use, we can use:

Photocells: FTE15 - FTE40 - FTGIN - FTMINI - FTG180 - FTB180 - HL.FXE180 - HL.FXEB180 - FTL180;
Photolaser: LD302;
Radar: RDMO1024 - IDRBMO - IDKTMI;
Magnetic loop detectors: LD112 - LD212 - LD102 - LD202 - LD100 -LD200;
Related pre-assembled coils: LDC06 - LDC10.
