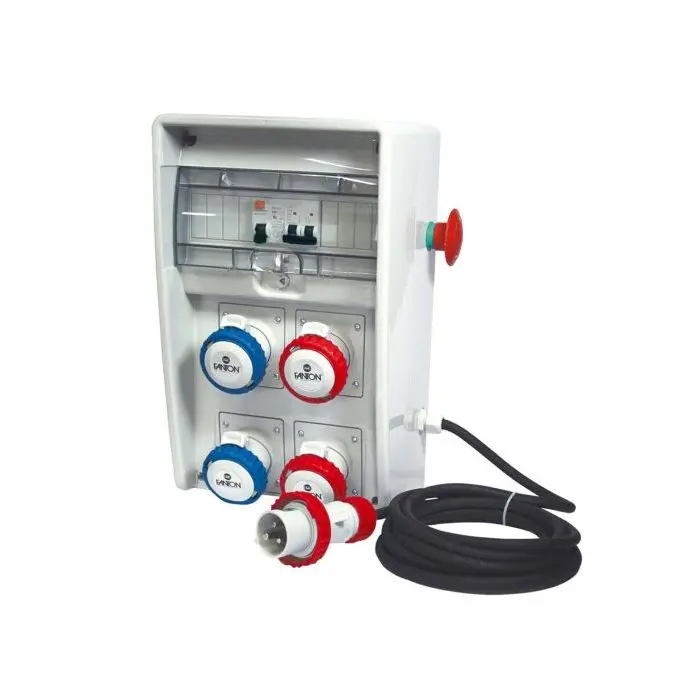

ULISSE ASC construction site electrical panel IP65 9kW 2 CEE 16A sockets and 2 380v inclined sockets with emergency button 74232

Name: ULISSE ASC construction site electrical panel IP65 9kW 2 CEE 16A sockets and 2 380v inclined sockets with emergency button 74232
Brand: FANTON
SKU: FME74232
Price: 309.6 EUR
Availability: OutOfStock

Out of stock

SKU: FME74232

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

ULISSE 250 ASC IP65 panel with 4 CEE sockets and 2 protections:

Code : 74232
Dimensions : 250x403x177 mm (WxHxD)
IP protection rating : IP65 (protection against dust and water jets)
Taken :
- 2 x 2P+E 16A 200-250V 6h IP67 (inclined)
- 1 x 3P+E 16A 380-415V 6h IP67 (inclined)
- 1 x 3P+N+E 16A 380-415V 6h IP67 (inclined)
General protections :
- 1 4P 16A C circuit breaker
- 1 x 4P 25A 30mA AC differential switch
Maximum power : 9 kW
Accessories :
- Emergency button
- 4m cable, 5G2.5 H07RN-F
- Plug 3P+N+E 16A 380-415V 6h IP67

This panel offers electrical protection and distribution with four inclined CEE sockets and two general protections via a circuit breaker and a residual current device. The maximum supported power is 9 kW, making it ideal for applications requiring reliable and safe electrical distribution.

Data sheet

Product type	ULYSSES painting
Number of sockets/outputs	4
Like sockets
	2P+E 16A 230V 6h IP67
	3P+N+E 16A 400V 6h IP67
	3P+E 16A 400V 6h IP67
Cable length	4,000 m
Cable section and type	5G2.5 H07RN-F
Plug type	3P+N+E 16A 400V 6h IP67
IP protection	IP65
Color	Grey
Accessories/options	Emergency button
Single package	Box
Quality mark	THERE IS
Power (Watt/Kilowatt)	MAX 9kW
Power dissipated (Watt)	14W
Classification	ELECTROCOD 22.4.1

More Information

Ean	8015450742327
Shipping	Shipping 24/48H
Warranty	2 year warranty
Colore	Gray
Cable Section	2.5 mm
Smart home	No
Dimensions	250x403x177 mm
Packaging	1
Waterproof	IP65
