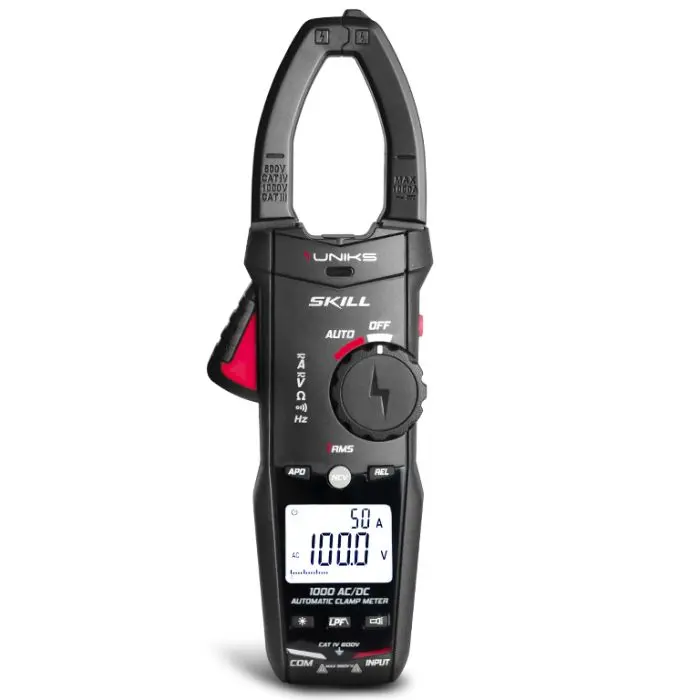

UNIKS SKILL Clamp Meter 1000A AC/DC TRMS: Automatic Measurements and Real Time Display

Name: UNIKS SKILL Clamp Meter 1000A AC/DC TRMS: Automatic Measurements and Real Time Display
Brand: UNIKS
SKU: SKILL
Price: 192.38 EUR
Availability: InStock

In stock

SKU: SKILL

Are you a Reseller? Register Here

Description

The UNIKS SKILL current clamp stands out for its ability to automatically recognize whether to carry out AC/DC TRMS current, AC/DC TRMS voltage and resistance/continuity measurements, all in auto range, in auto AC/DC and in CAT IV 600V

Main features:

Automatic measurement recognition : The clamp is able to automatically recognize whether AC or DC current/voltage measurements are being performed.
Real-time display of 2 measurements simultaneously : You can choose whether to display two measurements in real-time at the same time, such as current/voltage, current/resistance, current/continuity or current/frequency.
Equipped with an advanced microprocessor : The clamp is equipped with an advanced microprocessor that allows it to read from 200mA up to 1000A in both AC and DC in TRMS.
Precise reading : Thanks to the practical phase detector and the low pass filter, it is possible to obtain precise readings even in the presence of particularly distorted signals, filtering the high frequencies. The powerful flashlight and backlight allow you to work even in dark and hostile environments.
Reference regulations : Complies with MC & LVD regulations, EN 61326, EN 61010-1, EN 61010-02-032, EN 61010-02-03.

Data sheet

Functions Specifications

Automatic Measurement Recognition	DC Voltage: 600V, ±0.5% +3d
TRMS measurements	AC Voltage: 600V, ±0.8% +5d
Autonomy	DC Current: 1000A, ±3.0% +10d
Double display view	AC Current: 1000A, ±2.5% +8d
Current and voltage simultaneously	Resistance: 10M Ω, ±0.8% +3d
Current and Resistance/Continuity Simultaneously	Continuity: 1Ω, Buzzer up to 50Ω
Current and frequency simultaneously	Frequency: 1KHz, ±1.0% +5d
Voltage and frequency simultaneously
Protections across the entire voltage range
CATIV 600V
LCD display 6,000 measurement points
Automatic shutdown
Backlight
Data retention
Low Pass Filter
LED light
NCV (LED Voltage Detector with Buzzer)

More Information

Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	2 year warranty
Colore	Black
