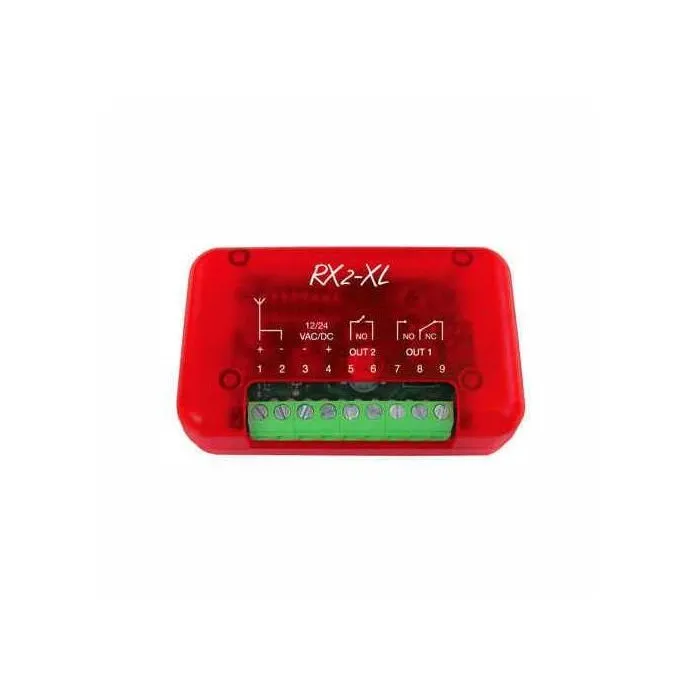

Universal 2-channel radio receiver Self-learning 433.92 Mhz RX2-XL - gate automation
Out of stock
|
SKU: RX2-XL
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.
Call us on +39 081.759.88.86 from Monday to Friday, from 9.00 to 13.00 and from 15.30 to 18.00 or
Universal radio receiver 2 channel Self-learning 433.92 Mhz, manages standard codes from 12 to 64 bits and rolling HCS Nologo Cod. RX2-XL
The receiver can be powered from 12 to 24 Volts both in direct current and in alternating current. The antenna must be connected with the positive (core) on terminal n ° 1 and the negative (braiding) on terminal n ° 2. If only one wire is used (17cm for freq. 433.92 MHz / 8.5cm for freq. 868 Mhz), this must be connected to terminal n ° 1. The Normally Open relay contact of output 1 is located on terminals 7 and 8 while the Normally Closed contact is on terminals 8 and 9. For output 2 only the normally open contact is present on terminals 5 and 6. It is recommended not to connect these contacts to high voltages and make sure that the current on the contact does not exceed 1 ampere. The receiver can manage up to 190 rolling transmitters up to 4 buttons per transmitter and up to 190 transmitters with standard code: 1 button per transmitter. This receiver is able to manage the standard codes from 12 to 80 bits, the rolling codes type HCS © or type EB Rolling. The receiver manages the codes for each key of the remote control, therefore any key can be associated with any output.
Ean
8056737257882
Shipping
Shipping 24/48H
Warranty
2 year warranty
Remote controls Frequency
433 Mhz
Channels number
2 ch
