universal timer S0506

Name: universal timer S0506
Brand: NO BRAND
SKU: TIMER
Price: 13.68 EUR
Availability: OutOfStock
Rating: 100 (1 reviews)

(1)

Out of stock

SKU: TIMER

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

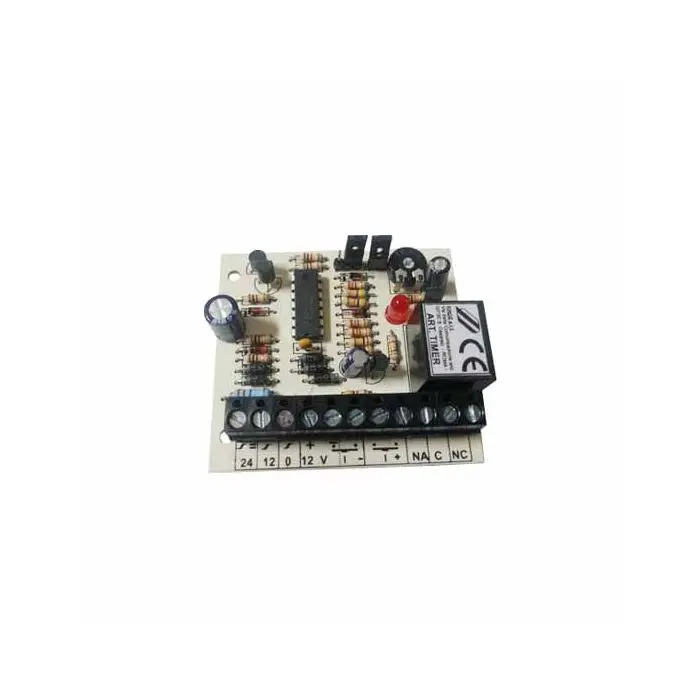

Universal Timer Model S0506

Flexible universal timer with three different operating modes:

1 - delay:

After receiving the start signal, the timing will start at the end of which you will get a short pulse of the output relay.

2 - Delay block with:

received the start signal, the timer will start at the end of which you will get the timing of the relay will remain energized until manually reset.

3 - Drop-out delay:

received the start signal, it will trigger the relay will remain energized for the set time.

Specifications

Planning your time: from 2 to 180 seconds
Exit: pure relay contact (comm.ncna) 5A max.
Power: 12 - 24V AC / DC
Size: 55 x 62 x 25
Weight <100 g

Provided with support base in plastic

More Information

Shipping	Shipping 24/48H
Warranty	1 year warranty
Ean	8056737258421
Smart home	No

Reviews (1)

Scheda temporizzatore universale TIMER S0506

Quality

Price

buon prodotto, pienamente conforme a quanto descritto

Review by Lorenzo Pomarico, 05/07/2017

Verified buyer
