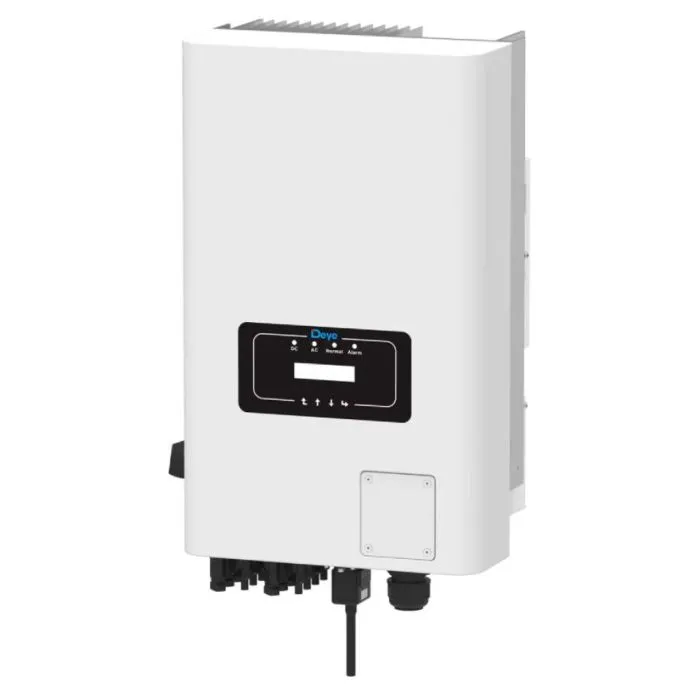

V-TAC DEYE SUN-30K-G04 Three-phase On-Grid Network Inverter 30kW photovoltaic system LCD screen and Integrated Smart Meter including CT and WiFi 5 Year Warranty IP65 - 11812
In stock
|
SKU: 11812
€1,608.75
Loading...
This product will be shipped within 10 working days
ONGRID inverter with 30kw three-phase output, two integrated MPPTs, allowing two input arrays from different roof orientations. It also allows you to monitor and control the system remotely. Thanks to the intelligent monitoring platform, Deye full series inverter products support immediate remote shutdown in the event of an accident. Setting parameters and updating the FW remotely simplify the O&M of the PV system.
Output side Rated output power (kW) 30 Maximum Active Power (kW) 33 Nominal AC mains voltage (V) 220/380, 230/400 AC mains voltage range (V) 277Vac~460Vac (this may vary with network standards) Nominal mains frequency (Hz) 50 / 60 (optional) Operational Phase Three-phase AC Mains Rated Output Current (A) 43.5 Maximum AC Output Current (A) 47.8 Output power factor 0.8 leading to 0.8 late Grid current THD <3% DC Injection Current (mA) <0.5% Grid frequency range 47~52 or 57~62 (optional) Efficiency Maximum efficiency 98.6% Euro efficiency 97.8% MPPT efficiency >99% Protection DC reverse polarity protection Yes AC short circuit protection Yes AC output overcurrent protection Yes Output overvoltage protection Yes Insulation resistance protection Yes Earth leakage monitoring Yes Protection from the island Yes Temperature protection Yes Built-in DC switch Yes Remote software upload Yes Remote modification of operating parameters Yes Surge protection Type II DC / Type II AC General data Dimensions (mm) 362W×577H×215D Weight kg) 25.5 Topology Without transformer Internal consumption <1W (Night) Operating temperature -25~65℃ Ingress protection IP65 Noise emission (typical) <45dB Cooling concept Intelligent cooling Maximum operating altitude without derating 2000 m Designed for life >20 years Network connection standards EN50549-1,VDE 0126-1-1 Humidity of the operating environment 0-100% EMC Safety/Standard IEC62109-1/-2, IEC61000-6-2, IEC61000-6-4 Characteristics DC connection MC-4 can be coupled AC connection Plug with IP65 protection rating Screen LCD 1602 Interface RS485/RS232/Wifi/LAN
