V-TAC Storage Battery 5.12kWh LiFePO4 stackable High Voltage CEI 0-21 51.2V 100Ah 10 Year Warranty - 12002

Name: V-TAC Storage Battery 5.12kWh LiFePO4 stackable High Voltage CEI 0-21 51.2V 100Ah 10 Year Warranty - 12002
Brand: V-TAC
SKU: 12002
Price: 1067.5 EUR
Availability: InStock

In stock

SKU: 12002

This product will be shipped within 10 working days

Are you a Reseller? Register Here

Description

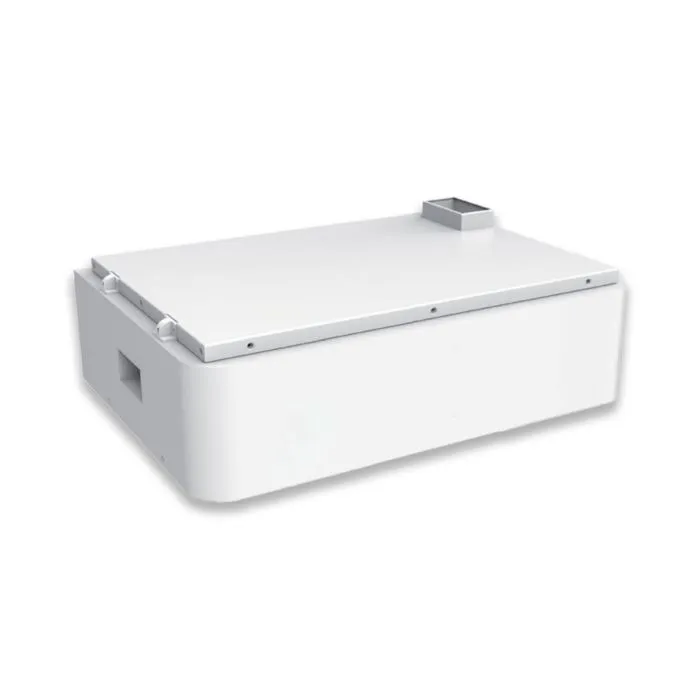

V-TAC stackable HIGH VOLTAGE Storage Battery Module SKU 12002

The V-TAC SKU 12002 Storage Battery Module offers an advanced and reliable solution for optimized energy storage. Using LiFePO4 (LFP) technology, it guarantees long life and safety, ideal for applications in photovoltaic systems with high voltage hybrid inverters. With a nominal voltage of 51.2V and a capacity of 100Ah, this module provides an energy of 5.12kWh, supporting a standard charge/discharge current of 40A and peaks of up to 50A. The compact dimensions of 590x420x194mm and a weight of 48.5kg make it easily integrated into different installation contexts. Designed specifically to be used together with V-TAC components SKU 12152 and 12151, it ensures efficient and safe operation of the energy storage system.

Main features:

LiFePO4 technology for long life and safety
Rated voltage: 51.2V, Capacity: 100Ah, Energy: 5.12kWh
Standard charge/discharge current: 40A, Peak: 50A
Dimensions: 590x420x194mm, Weight: 48.5kg
Compatible with V-TAC Deye high voltage hybrid inverters
Ideal for advanced photovoltaic and energy storage applications

Data sheet

Characteristic Value

SKU	12002
Family Code	OH-5K
Brand name	V-CT
Warranty	10 years
Battery Capacity	5.12 kWh
Mounting method	Stackable
Degree of Protection	IP65
Battery Capacity (Ah)	100 Ah
Battery type	LiFePO4 (LFP)
BMS	Integrated
Color	White
Dimension	590x420x194 mm
Installation type	to the ground
Operating temperature	-20 ~ +60°C
Nominal tension	51.2V
Standard discharge current	50A

More Information

SKU Padre	OH-5K
Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	10 years warranty
Colore	White
corrente_di_scarica	50
corrente_di_carica	50
Tipo_tensione_lvhv	High Voltage
Volt	51.2V
Accumulation	5.12kWh
Waterproof	IP65
Communication	RS485(standard)
