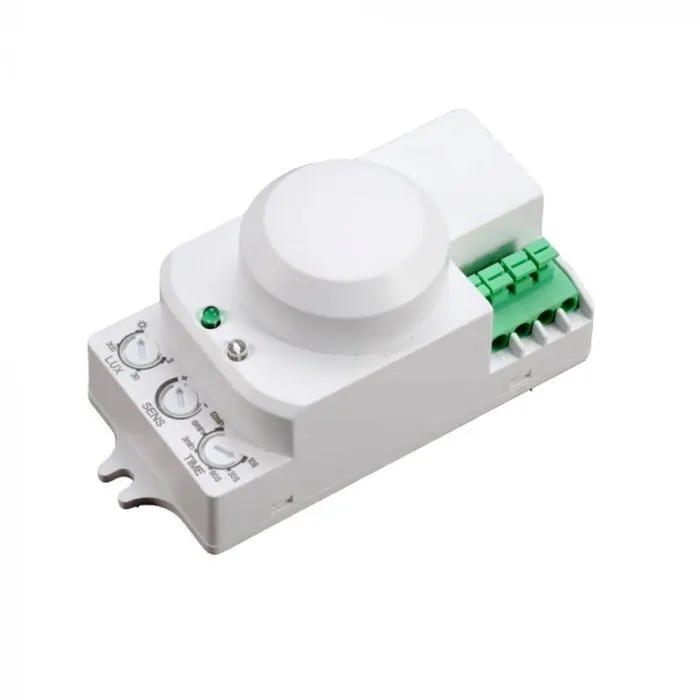

V-TAC VT-8077 Microwave Sensor 360° white with manual Override Function for led bulbs - sku 1446

Name: V-TAC VT-8077 Microwave Sensor 360° white with manual Override Function for led bulbs - sku 1446
Brand: V-TAC
SKU: 1446
Price: 13.52 EUR
Availability: InStock

In stock

SKU: 1446

Are you a Reseller? Register Here

Description

Motion Microwave Sensor 360° IP20 for LED lighting products. Possibility of varying the on time (TIME), the detection distance (SENS) and the intensity of the ambient light thanks to the Twilight Sensor (LUX). Suitable for all types of lampholder thanks to the connection via screw terminals.

Compatible with incandescent bulbs up to a maximum of 1200W and with LED and fluorescent bulbs up to a maximum of 300W. The ignition time of the bulb applied can be adjusted: minimum time 10 ± 3 sec; maximum time 12 ± 1 min. The sensor, installed at a height variable between 1.2 and 3.5 meters, has an adjustable detection distance from 2 to 16 meters and a detection range of 180 ° (or 360 ° if ceiling installed). The emission of microwaves of this sensor is less than 0,2Mw. Can be installed in outdoor environments, using the sensor holder Mod. VT-8021, with a degree of protection IP IP65 Waterproof.

Manual Override Function:
1. Automatic Sensor Override Mode - Turn the switch OFF and ON within 3 Seconds, the sensor will be overridden and switched off. Thelight will work continuously and normally.(Make sure the automatic mode is switched ON before using this functionality).
2. Sensor Switch On - Turn the switch OFF for 20 seconds and switch it back ON. The sensor will restart and work as per the settings adjusted.
3. If the light is left idle for a longer period of time, the sensor will automatically switch back to automatic mode (Possible when the outside light reaches 100Lux).

Data sheet

Sensor type: Microwave - Manual Override Function
Connection type: Connection with terminals
Detection range: 360 °
Nominal load (max power): 1000W (incandescent lamp) - 300W (energy saving + LED)
Detection distance: max. 2 - 16m.
Delay time / ignition duration: minimum time 10 ± 3 sec; maximum time 12 ± 1 min. (TIMMER TIME)
Adjustable light sensitivity 3-2000 Lux (TIMMER LUX)
Switching capacity LED Max. 300 W
1000 W incandescent switching capacity
Movement speed detection: 0.6 - 1.5 m / s
IP rating: Waterproof IP20 (can be used indoors)
Working environment: -20 ℃ + 45 ℃
Material: PC
Color: White

Dimensions:

Dimensions: 96 x 43 x 45 mm
Ceiling installation height: 1.2 - 3.5m.
Material: White body in rigid plastic

More Information

SKU Padre	VT-8077
Ean	3800157634755
Shipping	Shipping 24/48H
Warranty	2 year warranty
Colore	White
Installation	Incasso
Waterproof	IP20
