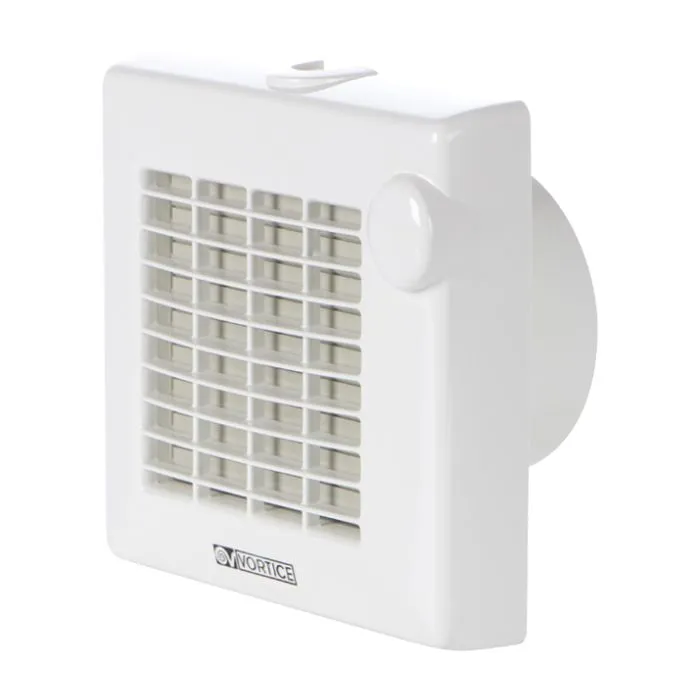

VORTICE 11421 150mm wall-mounted helical aspirator 150/6" A

Name: VORTICE 11421 150mm wall-mounted helical aspirator 150/6" A
Brand: VORTICE
SKU: VOR0000011421
Price: 141.98 EUR
Availability: OutOfStock

Out of stock

SKU: VOR0000011421

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Vortice code 11421, model M 150/6" A:

Construction: Made of age-resistant plastic resin, designed to withstand prolonged exposure to the sun (UV resistant).
Nominal diameter: 150 mm.
Motor: Equipped with a thermally protected motor, with shaft mounted on self-lubricating bushing supports. The motor is combined with a helical impeller in thermoplastic material with aerofoil blades.
Maximum flow rate: 335 m3/h, indicating the maximum amount of air that can be conveyed through the unit in one hour.
Flap opening/closing system: Equipped with an automatic system that regulates the opening and closing of the front grill flaps. This can be useful for controlling airflow and protecting the unit when not in use.

Used to improve ventilation in environments such as bathrooms, kitchens or technical rooms. The weather-resistant plastic resin construction makes it suitable for installation even in outdoor environments or those subject to strong sun exposure.

Made in Italy

Data sheet

Characteristic Value

Automatic opening	Yes
Max absorbed current (A)	0.15
Nominal Duct Diameter (mm)	160
Frequency (Hz)	50
Protection Grade	IPX4
Isolation	Class II
Ø Exhaust (mm)	156
Weight kg)	1.1
Max absorbed power (W)	29
Maximum continuous operating ambient temperature (°C)	50
Voltage (V)	220-240
Max flow rate (l/s)	93.1
Max flow rate (m³/h)	335
Max pressure (mmH2O)	6
Max pressure (Pa)	59
Sound Pressure Lp [dB (A)] 3m	46
RPM	2100

More Information

Ean	8010300114217
Shipping	Shipping 24/48H
Warranty	2 year warranty
Materials	resina plastica
Installazione	a muro
Colore	White
Watts	5
Smart home	No
Waterproof	IP54
Packaging	4
Voltage	AC:200-240V
Dimensions	150mm
