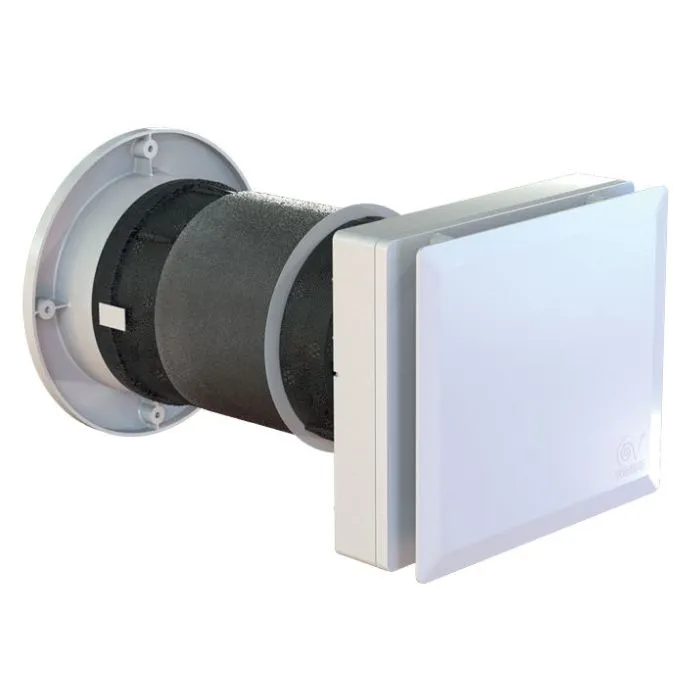

Vortice HRW 40 MONO EVO WiFi Decentralized Heat Recovery Unit 160 mm

Name: Vortice HRW 40 MONO EVO WiFi Decentralized Heat Recovery Unit 160 mm
Brand: VORTICE
SKU: VOR0000012442
Price: 350.4 EUR
Availability: InStock

In stock

SKU: VOR0000012442

Are you a Reseller? Register Here

Description

The Vortice HRW 40 MONO EVO WiFi is a decentralized ventilation unit with heat recovery, designed for wall-mounted installation in residential and commercial environments. The shock-resistant and UV-resistant plastic resin structure houses a hexagonal-cell ceramic exchanger, ensuring thermal efficiency of up to 90% at minimum flow rate.

The high-efficiency EC fan motor offers five speeds selectable via on-board controls, while the mesh Wi-Fi module allows for communication and flow balancing between multiple units without wiring. The two filters (IsoCoarse 65% and dust pre-filter) are easily removable and washable, and the integrated non-return valve prevents unwanted air from re-entering.

Shockproof and anti-UV plastic resin structure
Nominal duct diameter 160 mm
Hexagonal cell ceramic heat exchanger (efficiency up to 90%)
EC fan motor with 5 speeds
Integrated mesh Wi-Fi module
Double filter: IsoCoarse 65% and washable dust pre-filter
Integrated non-return valve
Scaffolding-free installation, external rubber grille

Data sheet

Characteristic Value

Code	12442
Nominal duct diameter	160 mm
Max absorbed current	0.05 A
Max absorbed power	6 W
Frequency	50–60 Hz
Voltage	220–240 V
Insulation	Class II
Maximum recovery efficiency	90%
Flow rate (min speed)	4.2 l/s (15 m³/h)
Range (max speed)	11.1 l/s (40 m³/h)
Pressure (min speed)	1.7 mmH₂O (17 Pa)
Pressure (max speed)	4.8 mmH₂O (47 Pa)
Sound power Lw (min speed)	36.5 dB(A)
Sound power Lw (med vel)	42.9 dB(A)
Sound power Lw (max speed)	49.3 dB(A)
Sound pressure Lp 3m (min speed)	19 dB(A)
Sound pressure Lp 3m (med speed)	25.4 dB(A)
Sound pressure Lp 3m (max speed)	31.8 dB(A)
Maximum continuous ambient temperature	50°C
Weight	3.30 kg
Diameter Ø	146 mm
Dimensions (A×B×C×D)	231×200×73×283 mm

More Information

SKU Padre	12442
Ean	8010300124421
Shipping	Shipping 24/48H
Warranty	2 year warranty
Materials	resina plastica
Nominal diameter	160mm
Installazione	a incasso
Colore	Black
Watts	5
Smart home	Yes
Packaging	1
Voltage	AC:200-240V
