VORTICE KAPPA centrifugal extractor for under hood for domestic kitchens 10950

Name: VORTICE KAPPA centrifugal extractor for under hood for domestic kitchens 10950
Brand: VORTICE
SKU: VOR0000010950
Price: 238.34 EUR
Availability: OutOfStock

Out of stock

SKU: VOR0000010950

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

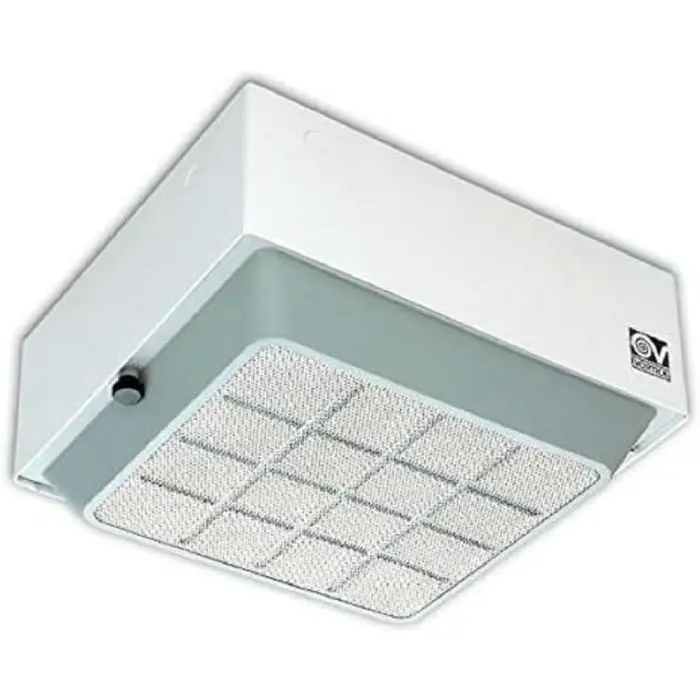

Code 10950, VORT KAPPA, represents a centrifugal extractor designed for installation under a hood. It is particularly suitable for intermittently ventilating small domestic kitchens.

Main features:

Made with a metal case, frame and motor holder, it includes an auger for effective suction.
The impeller and closing valves are made of heat-resistant, self-extinguishing and drip-proof material.
It uses a high-efficiency electronically commutated (EC) motor, combined with a centrifugal impeller, which allows a wide range of adjustments and significantly reduces energy consumption while maintaining high performance.
It has an automatic butterfly closure that prevents the return of air when the appliance is turned off.
It is equipped with a signaling device to indicate when the filter is saturated.
You can control the speed using a potentiometer or an optional 3-speed regulator.

This extractor is designed to ensure efficient ventilation of domestic kitchens, combining high-quality materials with advanced technologies to improve energy efficiency and overall functionality.

Data sheet

Parameter Value

Max speed rated current (TO)	0.55
Rated current min speed (TO)	0.1
Nominal Duct Diameter (mm)	100
Frequency (Hz)	50
Protection Grade	IPX0
Isolation	1st class
Ø Exhaust (mm)	97
Weight kg)	2.7
Max power absorbed at max speed. (W)	60
Max power absorbed at min speed. (W)	9
Voltage (V)	220-240
Max flow rate at max speed. (l/s)	75
Max flow rate at max speed. (m³/h)	270
Max flow rate at min speed. (l/s)	28
Max flow rate at min speed. (m³/h)	100
Max pressure at max speed (mmH2O)	35.5
Max pressure at max speed (Pa)	348
Max pressure at min speed (mmH2O)	7.3
Max pressure at min speed. (Pa)	72
Sound pressure Lp [dB (A)] 3m - max speed	55.3
Sound pressure Lp [dB (A)] 3m - min speed	35.8
Sound Pressure Lp in free field [dB(A)] 1 m	64.8
Sound Pressure Lp in free field [dB(A)] 3 m	55.3
RPM max	2270
RPM min	1050

More Information

SKU Padre	10950
Ean	8010300109503
Shipping	Shipping 24/48H
Warranty	2 year warranty
Materials	metallo
Nominal diameter	100mm
Installazione	a mobile
Colore	White
Smart home	No
Waterproof	IP54
Packaging	1
Voltage	AC:200-240V
