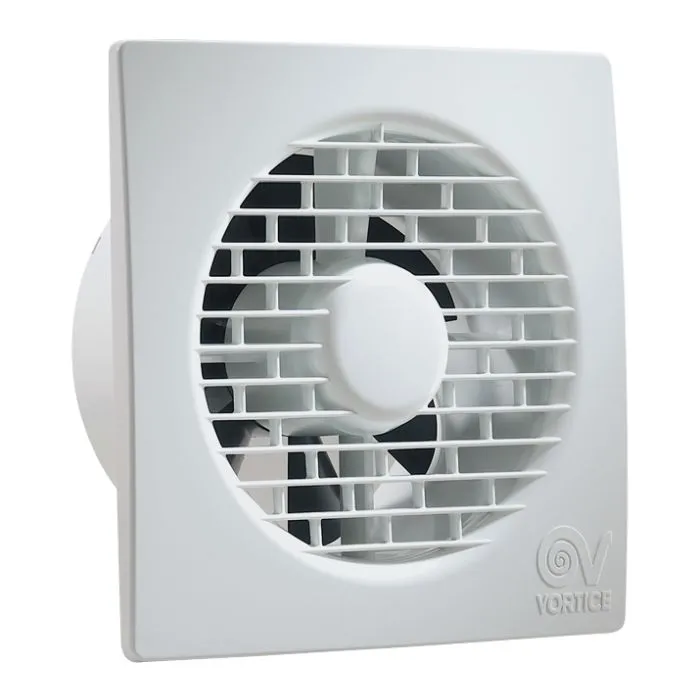

Vortice MF 150/6″ Wall-Mounted Axial Extractor Fan 150 mm – Flow Rate 335 m³/h – SKU 11125

Name: Vortice MF 150/6″ Wall-Mounted Axial Extractor Fan 150 mm – Flow Rate 335 m³/h – SKU 11125
Brand: VORTICE
SKU: VOR0000011125
Price: 114.04 EUR
Availability: OutOfStock

Out of stock

SKU: VOR0000011125

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

The Vortice MF 150/6″ (code 11125) is a high-performance wall-mounted axial fan designed for residential ventilation. Made of UV-resistant plastic resin , it guarantees long life even when exposed to sunlight. The motor is thermally insulated, with a shaft mounted on self-lubricating bushings and a helical impeller with wing-profile blades for efficiency and silence.

Diameter 150 mm : standard size for wall installations on home air ducts.
Significant air flow : up to 335 m³/h, for rapid air changes.
Fluid return ring : non-return valve integrated into the delivery port to prevent reverse currents.
Adjustable : Compatible with external Vortice regulator to vary the speed.
Mechanical robustness : resistant body and protected components, suitable for continuous use.

Compatibility and warranty
Power supply 220-240 V, indoor use. Supplied with a standard Vortice warranty (2 years). Simple maintenance: periodic cleaning of the filter (if present), check the non-return valve.

Data sheet

SKU / Product Code	11125
Brand	Vortex
Typology	Wall mounted helical extractor fan
Nominal duct diameter	150 mm
Voltage	220-240 V AC, 50 Hz
Max absorbed power	28 W
Maximum capacity	335 m³/h (≈ 93 L/s)
Maximum pressure	6 mmH₂O (≈59 Pa)
Sound level at 3 m	40.1 dB(A)
Protection level	IP X4
Insulation class	Class II
Weight	0.97 kg
Maximum ambient temperature in continuous operation	50°C
Air reentry protection	Integrated non-return valve
Body material	UV-resistant plastic resin
Engine rotation speed	2100 RPM
Warranty	2 years

More Information

SKU Padre	VOR0000011125
Ean	8010300111254
Shipping	Shipping 24/48H
Warranty	2 year warranty
Materials	Termoplastica
Nominal diameter	150mm
Installazione	a incasso
Colore	White
Smart home	No
Waterproof	IP20
Voltage	AC:200-240V
