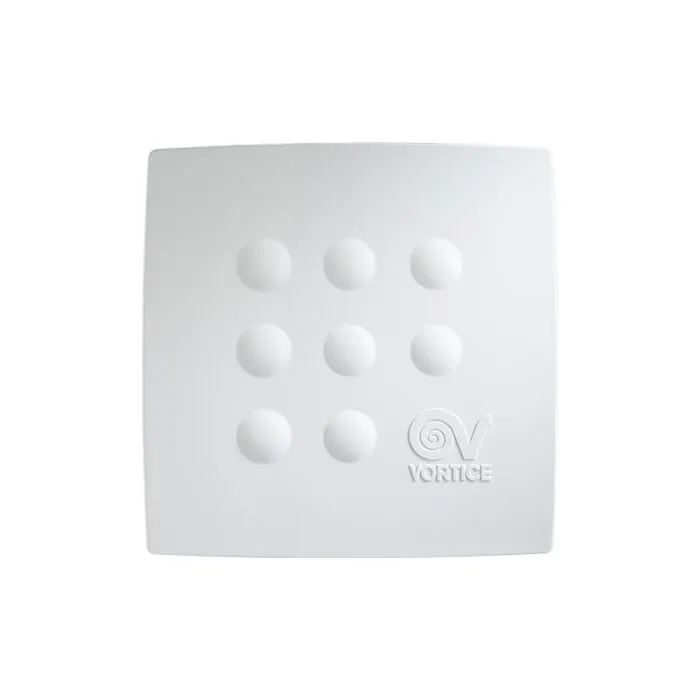

Built-in centrifugal extractor fan Vortice MICRO 100 I, made with a white ABS plastic construction for the parts that are not embedded in the wall, while the parts to be embedded are made of black plastic resin (PP) reinforced with talc for added strength. It has a nominal diameter of 100 mm and is equipped with a 2-speed induction motor with a starting capacitor. This motor is coupled with a forward-curved centrifugal impeller and is equipped with a thermal fuse protection and self-lubricating bushings.
- Maximum current consumption at max speed (A): 0.12- Maximum current consumption at min speed (A): 0.10- Nominal Duct Diameter (mm): 100- Frequency (Hz): 50- Protection Rating IP: X4- Insulation: Class II- Discharge Diameter (mm): 73.5- Weight (Kg): 1.91- Maximum power consumption at max speed (W): 27- Maximum power consumption at min speed (W): 20- Max ambient operating temperature for continuous operation (°C): 50- Voltage (V): 220-240- Maximum airflow at max speed (l/s): 28- Maximum airflow at max speed (m³/h): 100- Maximum airflow at min speed (l/s): 21- Maximum airflow at min speed (m³/h): 75- Maximum pressure at max speed (mmH2O): 22- Maximum pressure at max speed (Pa): 218- Maximum pressure at min speed (mmH2O): 20- Maximum pressure at min speed (Pa): 196- Lateral suction sound pressure [dB(A)] at 3m - max speed: 33.5- Lateral suction sound pressure [dB(A)] at 3m - min speed: 25.9- Sound pressure level Lp [dB(A)] at 3m - max speed: 34.3- Sound pressure level Lp [dB(A)] at 3m - min speed: 26.3- Max RPM: 1450- Min RPM: 1010
