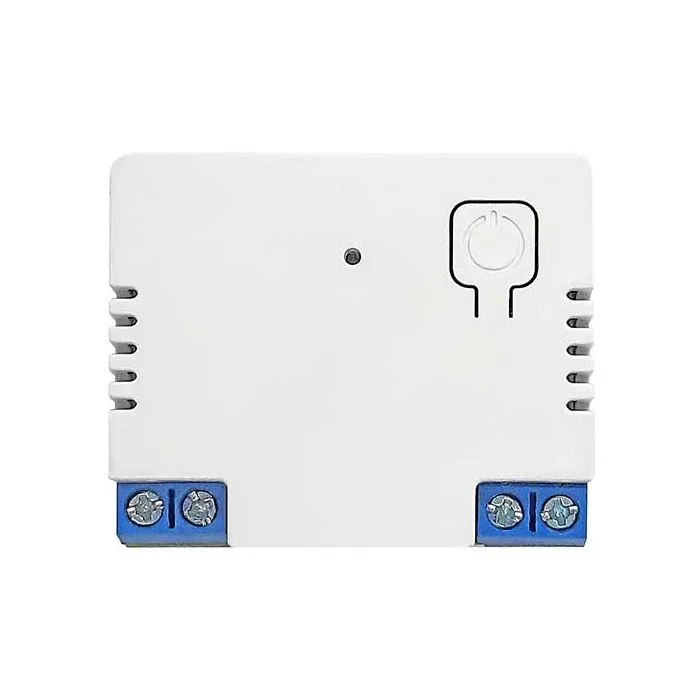

Wireless Low-current relay to control appliances remotely white color U-Prox Relay DC

Name: Wireless Low-current relay to control appliances remotely white color U-Prox Relay DC
Brand: U-PROX
SKU: UPROX-042
Price: 31.43 EUR
Availability: OutOfStock

Out of stock

SKU: UPROX-042

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

U-Prox Relay DC is a wireless low-current relay which is designed to control appliances remotely. The device is connected to the control panel and is configured with the U-Prox Installer mobile application.

Key Features

U-Prox remote control relay.
Dry contact.
Bidirectional.
Via radio 868 MHz.
Range of up to 1000 meters in open field.
7V ~ 24V DC input power.
Maximum power up to 3kW.
Designed to be installed in standard mechanism boxes such as wall switches.

Data sheet

Output: COM NO, 10A @ 250V AC or 30V DC max.
Operations: > 100.000
Power: 10.8 ... 13.2V DC
Modes: Impulse, trigger (bistable).
Impulse duration: adjustable: 0.1 ... 250 seconds
Delay: max. 5 seconds
Radio frequency: ISM-band wireless interface with several channels.
Communication: Secure two way communication, sabotage detection, key - 256 bits.
Operating temperature range: -10°C to +55°C
Dimensions: 44 х 36 х 18 mm
Case colour: White
Weight: 55 g
